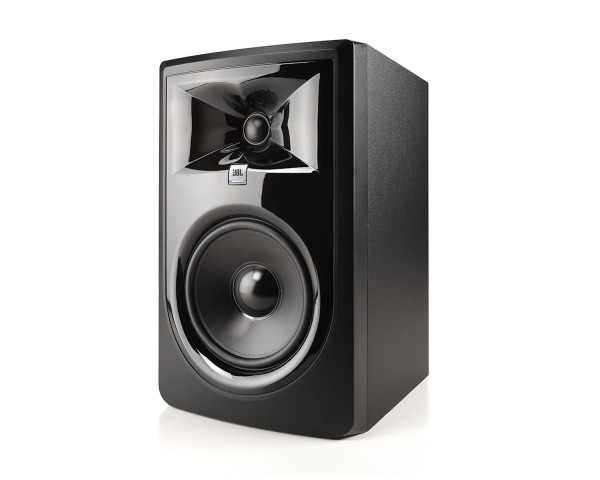

306P MKII Powered Class-D Amp 6" Two-Way Studio Monitor

Product Features

• Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
• Next-generation JBL transducers for optimized transient response and improved linearity
• Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
• Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
• New Boundary EQ settings compensate for low frequency variants introduced by the environment
• HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
• Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
• Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
• Strenuous JBL 100-hour full-power test ensures years of reliability
• Sleek, modern design provides a visual upgrade to any studio

Product Specifications

General

• LF Driver:  165mm (6.5")
• HF DRIVER SIZE:  25mm (1")
• HF DRIVER TYPE:  Soft dome
• Crossover:  1425Hz 4th order acoustic Linkwitz-Riley
• OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT:  Yes
• INPUT SENSITIVITY (-10dBV INPUT):  92dB / 1m
• Power Configuration:  Bi-amplified
• HF DRIVER POWER AMP:  56W, Class-D
• LF Driver Power Handling:  56W, Class D
• Frequency Response (±3 dB):  47Hz – 20kHz
• Frequency Response (-10dB):  39Hz – 24kHz
• LOW FREQUENCY EXTENSION (-10dB):  39Hz
• Maximum Continuous SPL:  92dB
• Maximum Peak SPL:  110dB
• MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu):  +6dBV / +20.3dBu
• SYSTEM DISTORTION CRITERIA:  <10% THD at maximum output with full compressor / limiter engagement
• ELECTRICAL DISTORTION CRITERIA:  0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
• Signal to Noise Ratio:  75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
• Coverage Angle:  120° x 90°
• Input Connectors:  1 x XLR female, 1 x TRS female, balanced
• HF TRIM CONTROL:  -2dB, 0dB, +2dB
• BOUNDARY EQ:  LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
• AC INPUT VOLTAGE:  100 – 240VAC (±10%), 50 / 60Hz
• Enclosure:  Ported
• ENCLOSURE CONSTRUCTION:  1
• 5mm MDF
• ENCLOSURE FINISH:  Matte black PVC
• BAFFLE CONSTRUCTION:  Injection-molded structural ABS

Physical

1. CABINET DIMENSIONS (H x W x D):  361 x 224 x 282mm (14.2" x 8.8" x 11.1")
2. DISPLAY CARTON (H x W x D):  408 x 285 x 328mm (16.1" x 11.2" x 12.9")
3. SHIPPING CARTON (H x W x D):  418 x 292 x 338mm (16.5" x 11.5" x 13.3")
4. Net Weight:  6.1 kg (13.42 lbs)
5. SHIPPING GROSS WEIGHT:  7.25 kg (15.95 lbs)
