A-2240DD Digital Mixer Amp 240W 3x Mic In/2x Aux/1x Rec Output

« return to previous page

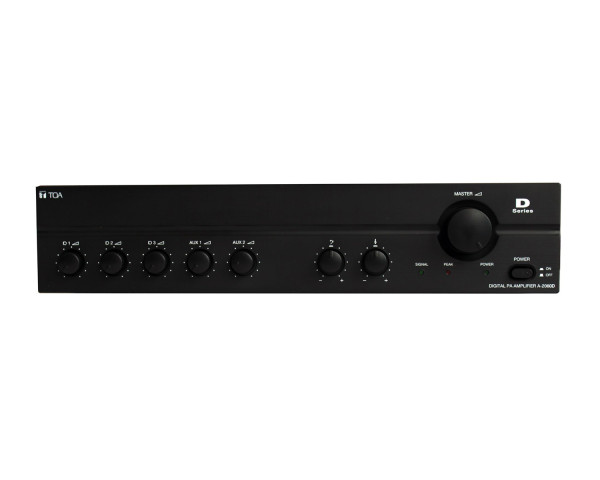

TOA A-2240DD Digital Mixer Amp 240W 3x Mic In/2x Aux/1x Rec Output - Main Image
Price:
RRP: £406.80 inc VAT
Code:
TOAA2240DD
Manufacturer Code:
A-2240DD
Brand:
TOA

Quantity required:

Main Features

  • A high performance digital mixer power amplifier
  • 4 versions available: 30 W, 60 W, 120 W or 240 W
  • User-friendly front panel allows easy operation
  • Recording output
  • 3 MIC inputs, 2 AUX inputs
  • Speaker output of constant voltage distribution system (100 V)
Share:

A-2240DD Digital Mixer Amp 240W 3x Mic In/2x Aux/1x Rec Output 100V

The A-2240DD-EB is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

The A-2000D Series is a range of high performance mixer power amplifiers at an optimal price/performance ratio: with excellent sound, energy efficient and eco-friendly. The A-2000D Series is suited for broadcasting paging or background music in schools, offices, shops, houses of worship and factories. Crystal clear announcements and high sound quality - the A-2000D is equipped with balanced microphone inputs for better isolation from external noise and provided with priority function on input #1, muting all other inputs when active.

Product Features

  • 4 versions available: 30 W, 60 W, 120 W or 240 W
  • 3 microphone inputs, 2 AUX input and 1 recording output
  • DD-varieties with 2 phone jacks and 1 5-pin DIN input
  • D-varieties with 3 phone jacks
  • Speaker output of constant voltage distribution system (100 V)
  • Independent tone control of boost and cut type for both high and low frequency
  • MIC 1 with phantom power and mute function
  • Current limiter to prevent damage due to current overload
  • Excess heat limit to protect the transistor and power transformer

Applications

  • Educational facilities
  • Office buildings
  • Retail stores
  • Factories
  • Houses of worship

Product Specifications

  • Power source:  220 - 240 V AC, 50 / 60 Hz
  • Rated output:  240 W
  • Frequency response:  50 Hz - 20 kHz (±3 dB)
  • Distortion:  < 1 % (at 1 kHz, 1/3 rated output power)
  • Power consumption:  48 W (EN 62368-1: AC operation at 1/8 rated output)
  • Speaker output:  100 V (42 ohm)
  • Amplifier:  Class D
  • S/N ratio:  60 dB (or more)
  • Number of channels:  1
  • Connectable microphones:  3
  • Inputs
    • MIC 1: -60dBV, 600 Ohm, balanced, 5-pin DIN equivalent, phantom power selectable, + 21V
    • MIC 2-3: -60dBV, 600 Ohm, balanced, phone jack
    • AUX 1-2: -20 dBV, 10 kOhm, unbalanced RCA pin jack
  • Control input:  Mute: via DIN jack
  • Outputs:  Speaker: balanced (floating) / Rec out: 0 dBV, 600 Ω, unbalanced, RCA Pin Jack
  • Finish:  ABS resin, Steel plate, black
  • Dimensions:  420 x 100.6 x 280.3 mm (W x H x D)
  • Weight:  4 kg

Optional Accessories

  • MB25B Rack Kit
