DA250D 2-Channel Digital Amplifier 2x250W @ 4Ω 1U

« return to previous page

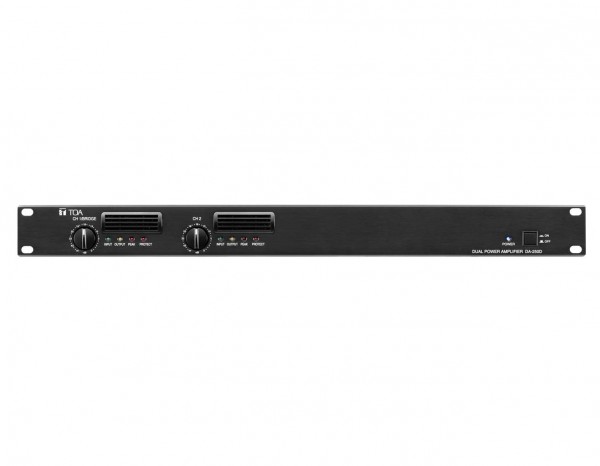

TOA DA250D 2-Channel Digital Amplifier 2x250W @ 4Ω 1U - Main Image
TOA DA250D 2-Channel Digital Amplifier 2x250W @ 4Ω 1U - Image 1
TOA DA250D 2-Channel Digital Amplifier 2x250W @ 4Ω 1U - Image 2
Price:
RRP: £1,140.00 inc VAT
Code:
TOADA250DD
Manufacturer Code:
DA-250D
Brand:
TOA

Quantity required:

Main Features

  • Extremely high amplification efficiency
  • Stands up to extended hours of operation
  • Has comprehensive protection circuitry
  • Lightweight 1U design
  • Ideal for dual-zone applications
  • Each of the channels has its own power supply
Share:

DA250D 2-Channel Digital Amplifier 2x250W @ 4ohms 1U

The DA-250D is a 2-Channel Digital Power Amplifier featuring lightweight, compact, high power output, and high efficiency. It delivers 250 W × 2 channels (4 Ω output) using a switching power supply. Each channel is equipped with an independent power section. It can be mounted in an EIA Standard equipment rack (1 unit size).

Product Features

  • Extremely high amplification efficiency
  • Stands up to extended hours of operation
  • Has comprehensive protection circuitry
  • Lightweight 1U design
  • Ideal for dual-zone applications
  • Each of the channels has its own power supply

Product Specifications

General

  • Amplification System: Class D
  • Power Consumption: 120 W (based on EN standards)
  • Power Consumption: 620 W (rated output 4 Ω × 2)
  • Power Consumption: 400 W (rated output 8 Ω × 2)
  • Input: 2 circuits 10 kΩ XLR-3-31 type connector CH 1 mode ON/OFF switch (ON: PARALLEL
  • Rated Output: 2 channels: 250 W × 2 (4 Ω)
  • Rated Output: 1 channel (BRIDGE): 500 W × 1 (8 Ω) M4 screw terminal
  • Frequency Response: 20 Hz - 20 kHz (±1 dB)
  • Total Harmonic Distortion: 0.1 % (1 kHz)0.3 % (20 Hz - 20 kHz)
  • S/N Ratio: 100 dB (A-weighted)
  • Crosstalk: 70 dB (A-weighted)
  • LED Indicator: Power (blue) × 1 Protect (red) × 2
  • Cooling: Forced air cooling
  • Operating Temperature: -10 ℃ to +40 ℃ (14 ゜F to 104 ゜F)
  • Operating Humidity: 90 %RH or less (no condensation)
  • Aluminum Case: Plated steel sheet

Physical & Dimensions

  • Height: 44mm
  • Width: 482mm
  • Depth: 401.8mm
  • Weight: 5.3kg
