DA250F Quad Digital Power Amp 4x250W @ 4Ω 1U

« return to previous page

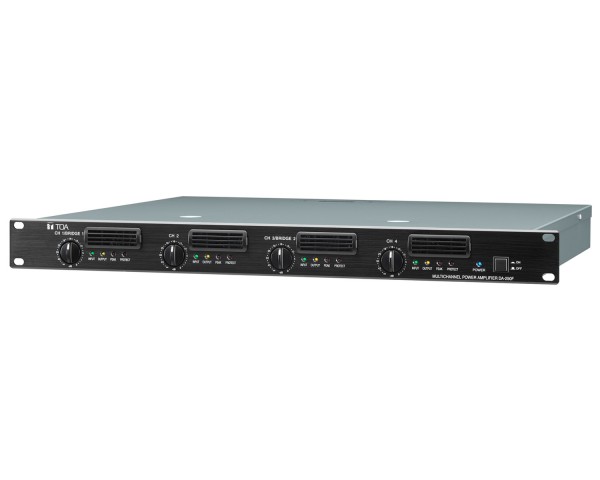

TOA DA250F Quad Digital Power Amp 4x250W @ 4Ω 1U - Main Image
Price:
RRP: £1,554.00 inc VAT
Code:
TOADA250F
Manufacturer Code:
DA-250F
Brand:
TOA

Quantity required:

Main Features

  • High-efficiency amplifier topology
  • Amplifier design optimized for installed sound applications
  • Easily accommodates high power requirements
  • Versatile enough for any venue
  • Compact dimensions facilitate installation
  • Enhanced reliability for trouble-free operation
Share:

DA250F Quad Digital Power Amp 4x250W @ 4ohms 1U

The new DA Series digital multi-channel amplifiers are the latest addition to the TOA line of industry-standard audio products for installed sound. The DA Series is ideal for multi-zone distributed speaker systems and professional sound applications.

Engineered with Class D technology, the new DA Series amplifiers operate at 85 percent efficiency and consume almost one-third less power than conventional analog amplifiers. The compact and lightweight (14.6 lbs.) single rack-space design and ultra-low heat dissipation allow designers to rack-mount up to five units without open space between units.

The first phase of the DA Series is comprised of two models; the high-impedance DA-250FH provides four 100 Volt output channels of 250 Watts. The low-impedance model DA-250F provides four channels of 250 Watts at four ohms or two channels of 500 Watts at eight ohms in bridged mode. Additional models are scheduled to be launched in 2007.

Equipped with an independent power supply for each channel, the new multi-channel amplifiers offer unmatched reliability and performance. Other features include recessed stepped attenuators for precise gain calibration, removable dust filters for easy maintenance, and optional isolation transformer.

Product Features

  • 4x 250W (4 ohms) 2x 500W bridged mode (8 ohms)
  • Limiter
  • Class D design – 85% efficient!
  • 30% lower power consumption than conventional amplifiers
  • Compact, single rack-space design
  • Stack up to 5 units without open spaces between units
  • Lightweight (14.6 lbs.)
  • Independent power supply for each channel
  • Low heat dissipation
  • Recessed stepped attenuators
  • Comprehensive protection circuitry
  • Removable dust filters for easy maintenance
  • Optional 250W isolation transformer, model MT-250H (DA-250FH only)

Product Specifications

General

  • Power Source: 120 V AC, 50/60 Hz
  • Amplification System: Class D
  • Power Consumption:
    • 200 W (based on UL/CSA standards)
    • 1300 W (rated output 4 Ω × 4)
    • 850 W (rated output 8 Ω × 4)
  • Input: 4 circuits, +4 dB* (1.23 V) (input level control in maximum position), 10 kΩ, electronically-balanced, removable terminal block (3 pins), CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch)
  • Rated Output:
    • 4 channels: 250 W × 4 (4 Ω), 170 W × 4 (8 Ω)
    • 2 channels (BRIDGE): 500 W × 2 (8 Ω)
    • M4 screw terminal, distance between barriers: 8.8 mm
  • Frequency Response: 20 - 20,000 Hz (±1 dB)
  • Total Harmonic Distortion:
    • 0.1% (1 kHz)
    • 0.3% (20 - 20,000 Hz)
  • Protection Circuit: Protection against excessive current flow due to overload, short circuit, unusual DC voltage output, temperature rise at power amp. heat sink (110℃ or more), temperature rise inside the unit (80℃ or more)
  • S/N Ratio: 100 dB (A-weighted)
  • Crosstalk: 70 dB (A-weighted)
  • LED Indicator: Power (blue) × 1, Input (green) × 4, Output (yellow) × 4, Peak (red) × 4, Protect (red) × 4
  • Cooling: Forced air cooling
  • Operating Temperature: -10℃ to +40℃
  • Operating Humidity: 90% RH or less (no condensation)
  • Finish: Panel: Aluminum, black, alumite Case: Plated steel sheet

Physical & Dimensions

  • Height: 44mm
  • Width: 482mm
  • Depth: 401.8mm
  • Weight: 6.6kg
