AC15 5.25" Ultra-Compact 2-Way Loudspeaker 150W 90x90° Black

« return to previous page

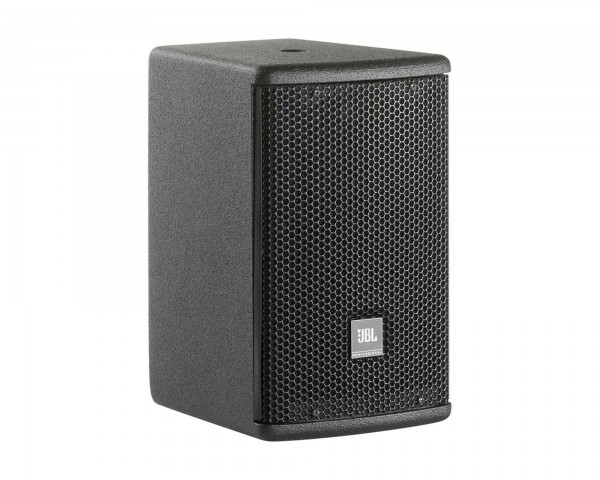

JBL AC15 5.25 Ultra-Compact 2-Way Loudspeaker 150W 90x90° Black - Main Image
JBL AC15 5.25 Ultra-Compact 2-Way Loudspeaker 150W 90x90° Black - Image 1
JBL AC15 5.25 Ultra-Compact 2-Way Loudspeaker 150W 90x90° Black - Image 2
Price:
RRP: £774.00 inc VAT
Code:
JBLAC15
Manufacturer Code:
JBL0763
Brand:
JBL

Quantity required:

Main Features

  • 1in Dome Tweeter with 90 x 90 Coverage.
  • Ultra compact enclosure
  • 300W Program Power
  • Dual Neutrik NL4 connectors plus screw terminal
  • High output, 2-way loudspeaker
  • Attachment points for optional U-bracket
Share:

AC15 5.25" Ultra-Compact 2-Way Loudspeaker - 90° x 90°

The AC15 is an ultra-compact full range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1” dome tweeter integrated into a newly designed 90° x 90° waveguide providing even coverage throughout the intended usage area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC15 utilises a 5.25” Symmetrical Field Geometry (SFG™) LF Transducer with a copper-clad aluminium edge wound 1.5” voice coil and a copper-capped pole piece that improves performance by reducing voice coil inductance and distortion.

The rugged multi-ply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount® type bracket.

The rugged plywood enclosure features JBL’s textured DuraFlex™ finish and is equipped with a heavy-duty powder coated steel, foam-backed grille.

Product Features

  • 1” Dome Tweeter with 90° x 90° Coverage.
  • 135 mm (5.25 in) LF transducer
  • Ultra compact enclosure
  • 300W Program Power
  • Dual Neutrik NL4 connectors plus screw terminal
  • Attachment points for optional U-bracket

Product Specifcations

General

  • Frequency Range: 80 Hz -20 kHz (-10 dB)
  • Frequency Response: 90 Hz -18 kHz (±3 dB)
  • Power Rating:150W Cont. Pink Noise 300W Program 600W Peak
  • Impedance: 16 ohms
  • Coverage Pattern: 90° x 90°

Physical & Dimensions

  • Height: 241.3mm
  • Width: 150.3mm
  • Depth: 177.8mm
  • Weight: 4.7kg
