Arcline 212 2x12" Line Array Element 2x900W Black

« return to previous page

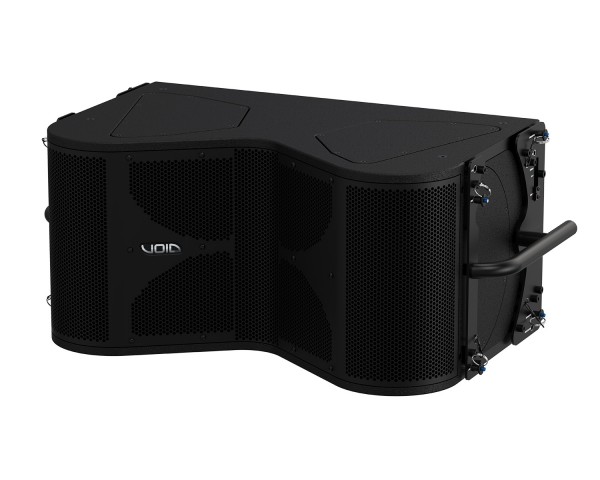

Void Acoustics Arcline 212 2x12 Line Array Element 2x900W Black - Main Image
Void Acoustics Arcline 212 2x12 Line Array Element 2x900W Black - Image 1
Void Acoustics Arcline 212 2x12 Line Array Element 2x900W Black - Image 2
Void Acoustics Arcline 212 2x12 Line Array Element 2x900W Black - Image 3
Void Acoustics Arcline 212 2x12 Line Array Element 2x900W Black - Image 4
Void Acoustics Arcline 212 2x12 Line Array Element 2x900W Black - Image 5
Void Acoustics Arcline 212 2x12 Line Array Element 2x900W Black - Image 6
Void Acoustics Arcline 212 2x12 Line Array Element 2x900W Black - Image 7
Void Acoustics Arcline 212 2x12 Line Array Element 2x900W Black - Image 8
Price:
POA
Code:
VOIARC212B
Manufacturer Code:
IT1577
Brand:
Void Acoustics

Quantity required:

Price on Application * please call sales team on
01525 850085 for more info

Main Features

  • Extended frequency range from 55 Hz to 120 Hz
  • Flyable with Arcline 8
  • Cardioid configuration integrated in the rigging
  • FEA optimised porting
  • Power handling:  2 x 900 W AES
  • Finish: Black
Share:

Arcline 212 2x12" Line Array Element 2x900W - Black

Specially designed to extend the low frequency range of the Arcline line array, the Arcline 212 features two 12” 900 W low frequency drivers. This makes it possible to extend the frequency response range to as low as 55 Hz, while also reaching up to 120 Hz.

For ease, the Arcline 212 is flyable with the Arcline 8. It can be used in any application where suspended bass is required, including large venues and medium to large scale touring. Two Neutrik speakON™ NL4 connectors provide input and link through connections. Its lightweight birch plywood enclosure is finished in a textured TourCoat polyurea finish, bringing longevity for life on the road.

4-Piece with flight case also available. Please contact our friendly sales team to order.

Product Features

  • Extended frequency range from 55 Hz to 120 Hz
  • Flyable with Arcline 8
  • Cardioid configuration integrated in the rigging
  • FEA optimised porting

Applications

  • Large venues
  • Indoor and outdoor events
  • Medium to large-scale touring
  • Live music venues

4-Piece with flight case also available. Please contact our friendly sales team to order.

Product Specifications

General

  • Frequency response:  55 Hz - 120 Hz
  • Efficiency:  99 dB 1W/1m
  • Nominal impedance:  2 x 8 Ω
  • Power handling:  2 x 900 W AES
  • Maximum output:  132 dB cont, 138 dB peak
  • Driver configuration:  2 x 12” low frequency drivers
  • Dispersion:  Array dependant
  • Connectors:  2 x 4-pole speakON™ NL4

Physical

  • Dimensions:  (H) 367 mm x (W) 877.5 mm x (D) 470 mm (14.4” x 34.5” x 18.5”)
  • Weight:  42 kg (92.6 lbs)
  • Enclosure:  15 mm multi-laminate plywood
  • Rigging:  A2 stainless steel rigging for use with Arcline 8 when flown or ground stacked
  • Finish:  Textured TourCoat polyurea
  • Grille:  Perforated steel with foam filler
  • Colour:  Black
