Arcline 218 2x18" High-Power Line Array Element 3000W Black

« return to previous page

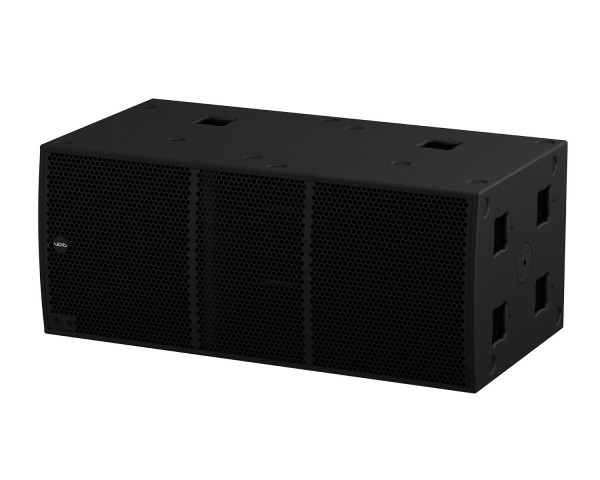

Void Acoustics Arcline 218 2x18 High-Power Line Array Element 3000W Black - Main Image
Void Acoustics Arcline 218 2x18 High-Power Line Array Element 3000W Black - Image 1
Void Acoustics Arcline 218 2x18 High-Power Line Array Element 3000W Black - Image 2
Void Acoustics Arcline 218 2x18 High-Power Line Array Element 3000W Black - Image 3
Void Acoustics Arcline 218 2x18 High-Power Line Array Element 3000W Black - Image 4
Void Acoustics Arcline 218 2x18 High-Power Line Array Element 3000W Black - Image 5
Void Acoustics Arcline 218 2x18 High-Power Line Array Element 3000W Black - Image 6
Void Acoustics Arcline 218 2x18 High-Power Line Array Element 3000W Black - Image 7
Void Acoustics Arcline 218 2x18 High-Power Line Array Element 3000W Black - Image 8
Price:
POA
Code:
VOIARC218B
Manufacturer Code:
IT2061
Brand:
Void Acoustics

Quantity required:

Price on Application * please call sales team on
01525 850085 for more info

Main Features

  • Two high power 18” neodymium transducers
  • Front and rear speakONTM chassis
  • New ergonomic handle cup design
  • Arrayable in multiple configurations, including cardioid
  • External dimensions optimised for truck packing
  • Hard-wearing textured ‘TourCoat’ polyurea finish
Share:

Arcline 218 2x18" High-Power Line Array Element 3000W - Black

As a new addition to the Arcline family, the Arcline 218 enhances our line array enclosure offering and is optimised for use in theatres, event spaces and outdoor areas. Developed using extensive Finite Element Analysis (FEA) modelling, the result is maximum performance from the smallest footprint. This FEA modelled hyperboloid porting also significantly reduces port noise and air distortion, while the advanced internal brace design brings a noticeable weight reduction and increased cabinet rigidity.

Arrayable with the Arcline 118 in multiple configurations, including cardioid, this brings a new level of versatility to the audio arena. Aesthetically-pleasing cable management when running in cardioid configuration is also now possible with the front speakONTM chassis. If manpower is limited for the setup, an Arcline system can be arrayed by one person independently and given that each Arcline product can be cased and transported in multiples, this radically reduces setup time. The subs have been specifically designed with the ease of touring in mind, with advantageous features including: ergonomic handle cup design; external dimensions optimised for truck packing; and a hardwearing polyurea finish for a long life on the road.

Product Features

  • Two high power 18” neodymium transducers
  • Front and rear speakONTM chassis
  • New ergonomic handle cup design
  • Arrayable in multiple configurations, including cardioid
  • External dimensions optimised for truck packing
  • Hard-wearing textured ‘TourCoat’ polyurea finish

Applications

  • Indoor and outdoor dance events
  • Large-scale touring
  • Live music venues

Product Specifications

General

  • Frequency response:  30 Hz - 200 Hz ±3dB
  • Efficiency:  100 dB 1W/1m
  • Nominal impedance:  2 x 8 Ω
  • Power handling:  3000 W AES
  • Maximum output:  134 dB cont, 140 dB peak
  • Driver configuration:  2 x 18” LF neodymium
  • Dispersion:  Array dependant
  • Connectors
    • Front: 2 x 4-pole speakON™ NL4
    • Rear: 2 x 4-pole speakON™ NL4

Physical

  • Dimensions:  (H) 550 mm x (W) 1316 mm x (D) 695 mm (21.7” x 51.8” x 27.4”)
  • Weight:  91 kg (200.6 lbs)
  • Finish:  Textured ‘TourCoat’ polyurea
  • Rigging:  1 x M20 top hat
  • Colour:  Black
