ATM230 Hypercardioid Dynamic Instrument Microphone

« return to previous page

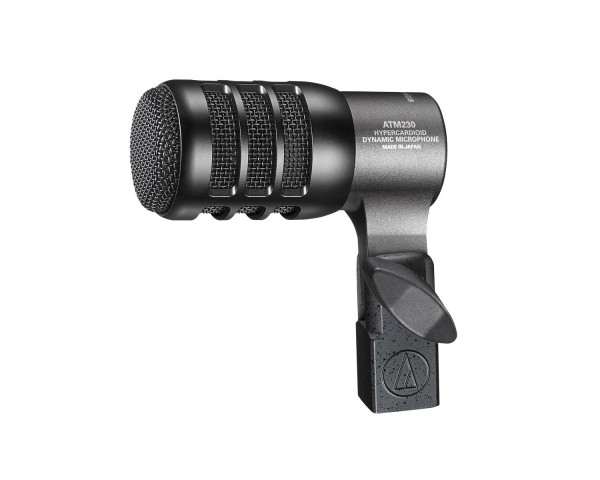

Audio Technica ATM230 Hypercardioid Dynamic Instrument Microphone - Main Image
Audio Technica ATM230 Hypercardioid Dynamic Instrument Microphone - Image 1
Audio Technica ATM230 Hypercardioid Dynamic Instrument Microphone - Image 2
Audio Technica ATM230 Hypercardioid Dynamic Instrument Microphone - Image 3
Audio Technica ATM230 Hypercardioid Dynamic Instrument Microphone - Image 4
Audio Technica ATM230 Hypercardioid Dynamic Instrument Microphone - Image 5
Price:
RRP: £144.00 inc VAT
Code:
AUDATM230
Manufacturer Code:
ATM230
Brand:
Audio Technica

Quantity required:

Main Features

  • Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Handles very high SPL at close range
  • Big, warm low-frequency response with excellent attack
  • Low-profile design permits versatile placement around drum kit
  • Rugged, all-metal design and construction for years of trouble-free use
  • Includes AT8665 drum mount and a soft protective pouch
Share:

ATM230 Hypercardioid Dynamic Instrument Microphone

The ATM230 hypercardioid instrument microphone brings a compact drum model to Audio-Technica’s popular Artist Series line. The mic’s proprietary capsule is designed to excel in high SPL applications, delivering full, well-rounded audio with an exceptional low-end.

The hypercardioid polar pattern keeps the focus on the sound source, directionality that is aided by the mic’s low-profile design, which allows it to be placed in a wide variety of setups. All this makes the ATM230 ideally suited for miking toms, snare and other percussion instruments.

Product Features

  • Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Handles very high SPL at close range
  • Big, warm low-frequency response with excellent attack
  • Low-profile design permits versatile placement around drum kit
  • Rugged, all-metal design and construction for years of trouble-free use
  • Includes AT8665 drum mount and a soft protective pouch

Product Specifications

  • Element:  Dynamic
  • Polar Pattern:  Hypercardioid
  • Frequency Response:  30-12,000 Hz
  • Open Circuit Sensitivity:  –54 dB (1.9 mV) re 1V at 1 Pa
  • Weight:  292 g (10.3 oz)
  • Dimensions:  82.5 mm (3.2") long, 38.0 mm (1.5") maximum diameter
  • Output Connector:  Integral 3-pin XLRM-type

What's in the Box?

  • ATM230
  • AT8665 drum mount for 5/8"-27 threaded adaptor
  • 5/8"-27 to 3/8"-16 threaded adaptor
  • Soft protective pouch

Product Downloads
