ATM355VF Cardioid Condenser Instrument Mic with Violin/Flute Clip

« return to previous page

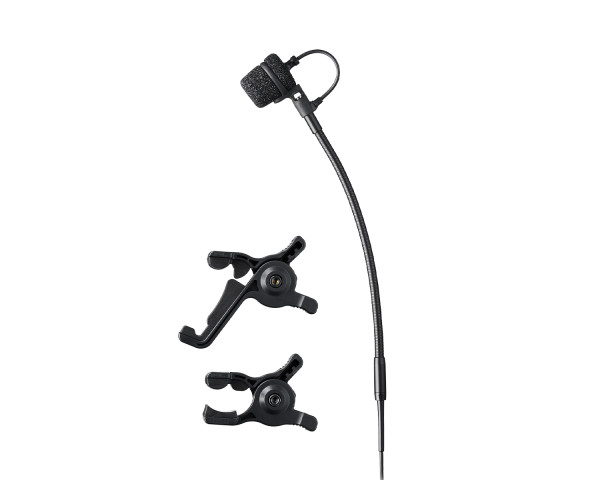

Audio Technica ATM355VF Cardioid Condenser Instrument Mic with Violin/Flute Clip - Main Image
Audio Technica ATM355VF Cardioid Condenser Instrument Mic with Violin/Flute Clip - Image 1
Audio Technica ATM355VF Cardioid Condenser Instrument Mic with Violin/Flute Clip - Image 2
Audio Technica ATM355VF Cardioid Condenser Instrument Mic with Violin/Flute Clip - Image 3
Audio Technica ATM355VF Cardioid Condenser Instrument Mic with Violin/Flute Clip - Image 4
Price:
RRP: £552.00 inc VAT
Code:
AUDATM355VF
Manufacturer Code:
ATM355VF
Brand:
Audio Technica

Quantity required:

Main Features

  • Designed Specifically for String and Woodwind Instruments
  • High-sensitivity microphone for clear, balanced sound at up to 148.5 dB SPL
  • AT8543 power module w/ switchable 80 Hz low-cut filter reduces unwanted low-frequency sound
  • Connects to cW-style bodypack transmitters
  • Flexible, lightweight gooseneck design
  • Includes Three Dedicated Mounts
Share:

ATM355VF Cardioid Condenser Instrument Mic with Violin/Flute Clip

Designed for professional live and studio use, the ATM355VF is available with a wide range of mounts that make it incredibly easy to accurately capture sounds from string, woodwind, and various other instruments. The flexible gooseneck design means the microphone stays in the ideal position even during lively performances.

Product Features

  • Designed Specifically for String and Woodwind Instruments
  • High-sensitivity microphone for clear, balanced sound at up to 148.5 dB SPL
  • AT8543 power module with switchable 80 Hz low-cut filter to reduce unwanted low-frequency sound
  • Connects to cW-style bodypack transmitters
  • Flexible, lightweight gooseneck design
  • Includes Three Dedicated Mounts
  • AT8491V violin mount
  • AT8491F flute mount
  • Designed for instruments with a body depth of 30 to 55 mm, the clip-type violin mount holds the front and back plates in place for easy one-handed attachment and removal. The design ensures minimal contact with the instrument to greatly reduce sound attenuation and prevent any loss in resonance. The special material and design of the AT8491V also help prevent damage to the surface of the instrument.
  • AT8493 joint adapter
  • The AT8491F flute mount is designed for flute diameters of 12 to 30 mm. The rounded contact surface ensures it can be mounted on not only flutes and other wind instruments but any cylindrical object, including microphone stands. Contact surfaces are also made of a scratch-resistant material that will not damage instrument surfaces.

Product Specifications

  • Element:  Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern:  Cardioid
  • Frequency Response:  40 - 20,000 Hz
  • Low Frequency Roll Off:  80 Hz, 12 dB/octave (mounted on an AT8543 Power Module)
  • Open Circuit Sensitivity:  -39 dB (12.6 mV) (0 dB=1 V/Pa, 1 kHz)
  • Impedance:  200 ohms
  • Maximum Input Sound Level:  148.5 dB SPL (1 kHz THD1%)
  • Dynamic Range:  126.5 dB (1 kHz at Max SPL)
  • Signal-to-Noise Ratio:  72 dB (1 kHz at 1Pa, A-weighted)
  • Phantom Power Requirements:  11 - 52 V DC, 3.5 mA (mounted on an AT8543 Power Module)
  • Element Power Requirements:  2.5-11V DC (0.1 mA current consumption typical at 5V DC)
  • Switch:  Flat, roll-off (mounted on an AT8543 Power Module)
  • Weight (microphone):  29.5 g (1.0 oz)
  • Weight (power module):  90 g (3.2 oz)
  • Operation Temperature Range:  -10°C to 60°C (14°F to 140°F)
  • Storage Temperature Range:  -20°C to 60°C (-4°F to 140°F), 10% to 90%RH (no condensation)
  • Cable:  1.8 m (5.9')
  • Dimensions (power module):  92 mm (3.6") long, 18.9 mm (0.74") diameter
  • Dimensions (microphone):  21.6 mm (0.85") × 33 mm (1.3") × 200 mm (7.9")
  • Output Connector (power module):  Integral 3-pin XLR-M type
  • Output Connector:  cW connector (ATM355), cH connector (ATM355cH), TA4F connector (ATM355VFcT4), and Interlocking 3.5mm (ATM355VFcLM3)

What's in the Box?

  • Power module (AT8543) (with cW version)
  • Belt clip
  • Violin mount (AT8491V)
  • Flute mount (AT8491F)
  • Joint adapter (AT8493)
  • Hard shell carry case
