CDD10B-WR 10

Price:: RRP: £1,500.00 inc VAT
Code:: MAUCDD10BWR
Manufacturer Code:: CDD10B-WR
Brand:: Martin Audio

Main Features

CDD10-WR Weatherised Ultra-Compact Coaxial Differential Dispersion System (CDD)
Features a water and particle resistant grille made from zinc plated mild steel with powder coated finish
Environmentally tested to meet IP54
8O nominal impedance
Integral inserts for eyebolt suspension
Finished in Black or White

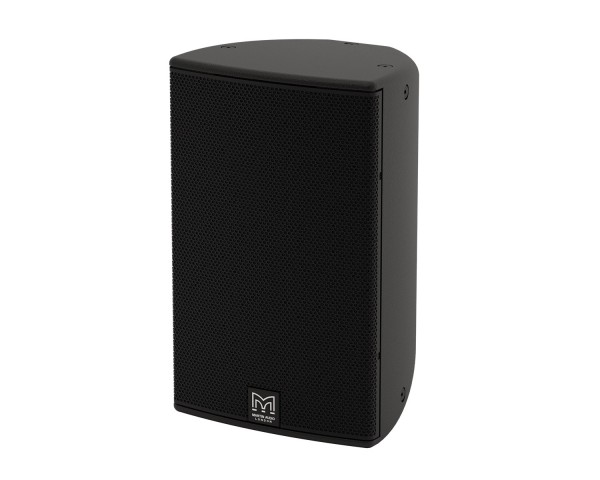

CDD10-WR (Weatherised) - Black

The CDD10-WR is a weatherised very compact two-way passive loudspeaker system suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It utilises a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver and features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.

The Coaxial Differential Dispersion technology employed in the CDD10-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.

The visually-distinctive composite enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the CDD10-WR allows it to be surface-mounted close to a wall via an optional wall bracket or suspended from a ceiling by eyebolts or a horizontal yoke option A full suite of weatherised accessories are available and fixings on the loudspeaker are stainless steel.

Finished in black (RAL9005) or white (RAL9016) as standard and can be supplied in any RAL colour to order (Please call our friendly sales team for details)

Product Features

Compact, CDD™ passive two-way system
Coaxial Differential Dispersion™ technology
Elegant UPM Formi composite enclosure
Outdoor operation when sheltered from direct exposure to elements
Operating temperature -20°C to +70°C
Environmentally tested to meet IP54
User-rotatable coaxial drive unit
Vertical and horizontal mounting options
Screw-free water and particle resistant grille
8Ω nominal impedance
Integral inserts for eyebolt suspension
Discreet weatherised mounting accessories
Black or white standard colour options

Product Specifications

TYPE: Compact, Coaxial Differential Dispersion passive two-way system
FREQUENCY RESPONSE: 65Hz-20kHz ± 3dB, -10dB @ 55Hz
RATED POWER: 250W AES, 1000W peak
Recommended Amplifier: MA2.0
SENSITIVITY: 96dB
MAXIMUM SPL: 120dB continuous, 126dB peak
NOMINAL IMPEDANCE: 8 ohms
DISPERSION (-6dB): 110˚-75˚ horizontal, 60˚ vertical (user-rotatable)
CROSSOVER: 2kHz passive
CONNECTORS: Low profile 20A push-lock, weatherproof input panel cover with cable gland
PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link+

Driver

LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF
HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver

Physical & Dimensions

ENCLOSURE: 28 litre, composite material
FINISH: Black or white
PROTECTIVE GRILLE: Zinc plated mild steel with powder coated finish and weatherised backing
ENVIRONMENTAL: Rated at IP54
FITTINGS: 6 x M8 inserts for wall bracket, 10 x M8 fly points
DIMENSIONS: (W) 323mm x (H) 513mm x (D) 310mm | (W) 12.7ins x (H) 20.2ins x (D) 12.2ins
WEIGHT: 15.5kg (34.2lbs)
