CDD12B 12" 2-Way Passive Loudspeaker 300W Black

« return to previous page

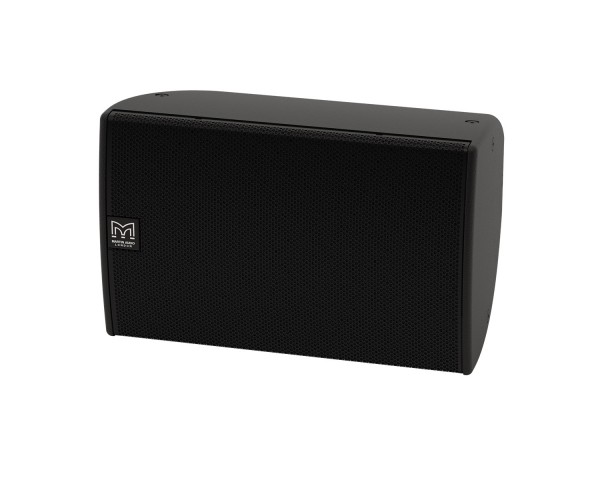

Martin Audio CDD12B 12 2-Way Passive Loudspeaker 300W Black  - Main Image
Price:
RRP: £1,740.00 inc VAT
Code:
MAUCDD12B
Manufacturer Code:
CDD12B
Brand:
Martin Audio

Quantity required:

Main Features

  • Compact, passive two-way system designed for installations
  • Delivers perfect sound across the audience over medium-throw distances
  • Including live music, clubs, bars, museums, concourses, exhibition centres & HoW
  • Can be used in either horizontal or vertical orientation
  • Can be surface-mounted close to a wall or ceiling
  • Finished in black or white
Share:

CDD12 - Black

The CDD12 is a compact, passive two-way system designed for installations that require high output levels. Its high-specification 12” (300mm) LF /1” exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances.

The Coaxial Differential Dispersion technology employed in the CDD12 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.

The LF driver has a 2.5” (65mm) voice coil and efficient motor with an aluminium demodulating ring to minimise distortion, while the HF driver utilises a 1.75” (44mm) polyimide diaphragm and features a low-compression phase-plug to reduce non-linearity.

The visually-distinctive composite enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the CDD12 allows it to be surface-mounted close to a wall via an optional wall bracket or suspended from a ceiling by eyebolts or a horizontal yoke option.

A full-range, passive two-way system, the CDD12 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5, DX1.5 or DX2, or an MA Series amplifier with onboard DSP will maximise its capabilities. When used with a CSX subwoofer, crossover and EQ functions can either be performed by the DX0.5, DX1.5 and DX2 system controllers, or by an MA Series amplifier with onboard DSP option.

Finished in black (RAL9005) or white (RAL9016) as standard and can be supplied in any RAL colour to order (Please call our friendly sales team for details)

Product Features

  • Compact, CDD™ passive two-way system
  • Coaxial Differential Dispersion™ technology
  • Elegant UPM Formi composite enclosure
  • User-rotatable coaxial drive unit
  • Vertical and horizontal mounting options
  • Screw-free perforated steel grille
  • 8Ω nominal impedance
  • Discreet mounting accessories
  • Integral inserts for eyebolt suspension
  • Black or white standard colour options

Product Specifications

  • TYPE: Compact, high-output, Coaxial Differential Dispersion passive two-way system
  • FREQUENCY RESPONSE: 62Hz-20kHz ± 3dB, -10dB @ 50Hz
  • DRIVER LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF
  • HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
  • RATED POWER: 300W AES, 1200W peak
  • RECOMMENDED AMPLIFIER: MA2.0, MA3.0
  • SENSITIVITY: 97dB
  • MAXIMUM SPL: 122dB continuous, 128dB peak
  • NOMINAL IMPEDANCE: 8 ohms
  • DISPERSION (-6dB): 110˚-60˚ horizontal, 60˚ vertical (user-rotatable)
  • CROSSOVER: 1.9kHz passive
  • ENCLOSURE: 38 litre, composite material
  • FINISH: Black or white textured paint
  • PROTECTIVE GRILLE: Black or white perforated steel with scrim cloth backing
  • CONNECTORS: Low profile 20A push-lock
  • PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link+
  • FITTINGS: 6 x M8 inserts for wall bracket, 10 x M8 fly points
  • DIMENSIONS: (W) 357mm x (H) 571mm x (D) 348mm (W) 14.1ins x (H) 22.5ins x (D) 13.7ins
  • WEIGHT: 19.3kg (42.5lbs)
  • ACCESSORIES: CDDWB10/12B wall bracket black, CDDWB10/12W wall bracket white, CDDYA12B yoke assembly black, CDDYA12W yoke assembly white
