CMS501BM 5" ICT Ceiling Speaker 100V with Back Can

« return to previous page
Clearance

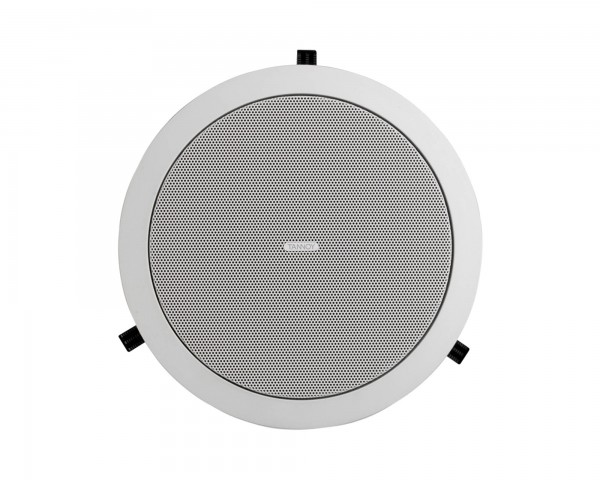

TANNOY CMS501BM 5 ICT Ceiling Speaker 100V with Back Can - Main Image
TANNOY CMS501BM 5 ICT Ceiling Speaker 100V with Back Can - Image 1
TANNOY CMS501BM 5 ICT Ceiling Speaker 100V with Back Can - Image 2
TANNOY CMS501BM 5 ICT Ceiling Speaker 100V with Back Can - Image 3
TANNOY CMS501BM 5 ICT Ceiling Speaker 100V with Back Can - Image 4
Price:
RRP: £187.92 inc VAT
Code:
TANCMS501BM
Manufacturer Code:
000-BU100-00010
Brand:
TANNOY

Quantity required:

Main Features

  • High power and high sensitivity ceiling monitor system
  • Specifically designed for applications requiring sonic quality for music and speech reinforcement
  • Exceptional reliability and intelligibility
  • Spring loaded self-aligning clamps make for quick and easy installation
  • Equipped with a low insertion loss
  • Available to satisfy the vast majority of installation application requirements
Share:

CMS501BM 5" ICT Ceiling Speaker 100V with Back Can

The Tannoy CMS501 is a full bandwidth; high power and high sensitivity ceiling monitor system; a compact unit that is specifically designed for applications requiring the combination of premium sonic quality for music and speech reinforcement and exceptional reliability.

The design comprises a 130mm (5.00”) ICT™ transducer mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material.  Spring loaded self-aligning clamps make for quick and easy installation, while all models are also supplied with two tile support rails and one C-ring included in the package.

The zinc plated steel back cans have an integrated, recessed termination box. The removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit.

Product Features

  • Full range ceiling loudspeaker for installation applications
  • 50 Watts continuous, 200 Watts peak power
  • 5" ICT (Inductive Coupling Technology) point source driver for extended frequency range
  • 90° constant directivity dispersion for optimum coverage
  • Blind mount version supplied with acoustically enhanced zinc plated steel back can
  • Integrated single unit construction for ease of installation
  • Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
  • UL 1480 certified for general signalling systems
  • UL 2043 certified for air-handling spaces
  • Low insertion loss 30 W line transformer with easily accessible tapping switch
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated UV resistant perforated steel mesh grille with dust protection
  • Removable grille for custom painting
  • Self-aligning 4 way clamp mounting system
  • Mounting C-ring and ceiling tile rails included
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.

Product Specifications

General

  • Frequency Response (-3dB) (1) BM Back can: 85Hz - 22kHz
  • Frequency Range (-10dB) (1) BM Back can: 4Hz - 24kHz
  • Frequency Range (-10dB) (1) PI Back can: 71Hz - 24kHz
  • System Sensitivity (1W @1m) (2): 89dB (1W = 2.45V for 6 Ohms)
  • Nominal Coverage Angle: 90 degrees conical
  • Coverage Angle (1kHz to 6kHz): 105 degrees
  • Directivity Factor (Q): 5.6 averaged 1kHz to 6kHz
  • Directivity Index (DI): 7.0 averaged 1kHz to 6kHz
  • Rated Maximum SPL: Average: 106dB, Peak: 112PdB
  • Power Handling (3): Average: 50W , Programme: 100W , Peak: 200W
  • Recommended Amplifier Power: 100W @ 6 Ohms
  • Nominal Impedance: 6 Ohms
  • Transformer Taps (via front rotary switch): 70V: 30W / 15W / 7.5W / 3.75W / OFF, & low impedance operation , 100V: 30W / 15W / 7.5W / OFF, & low impedance operation
  • Crossover: 7kHz inductively coupled

Transducers

  • Low Frequency: 130mm (5.00") mineral loaded, polypropylene ICT™
  • High Frequency: ICT™ aluminium dome
  • Net Weight: 3.60kg
