CMS501DCBM 5" Dual-C Ceiling Speaker 100V with Back Can

« return to previous page
Clearance

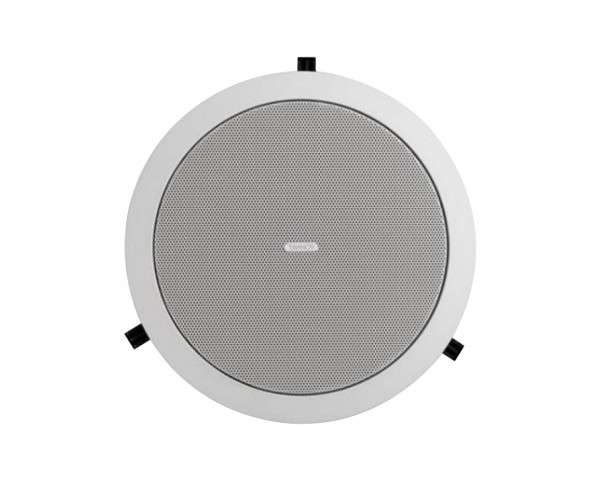

TANNOY CMS501DCBM 5 Dual-C Ceiling Speaker 100V with Back Can - Main Image
TANNOY CMS501DCBM 5 Dual-C Ceiling Speaker 100V with Back Can - Image 1
TANNOY CMS501DCBM 5 Dual-C Ceiling Speaker 100V with Back Can - Image 2
TANNOY CMS501DCBM 5 Dual-C Ceiling Speaker 100V with Back Can - Image 3
TANNOY CMS501DCBM 5 Dual-C Ceiling Speaker 100V with Back Can - Image 4
TANNOY CMS501DCBM 5 Dual-C Ceiling Speaker 100V with Back Can - Image 5
Price:
RRP: £218.40 inc VAT
Code:
TANCMS501DC
Manufacturer Code:
80014480
Brand:
TANNOY

Quantity required:

Main Features

  • High power and high sensitivity ceiling monitor system
  • Specifically designed for applications requiring sonic quality for music and speech reinforcement
  • Exceptional reliability and intelligibility
  • Spring loaded self-aligning clamps make for quick and easy installation
  • Equipped with a low insertion loss
  • Available to satisfy the vast majority of installation application requirements
Share:

CMS501DCBM 5" Dual-C Ceiling Speaker 100V c/w Back Can

The Tannoy CMS501 DC is a full bandwidth; high power and high sensitivity ceiling monitor system; a compact unit that is specifically designed for applications requiring the combination of premium sonic quality for music and speech reinforcement, exceptional intelligibility and long term reliability.

The design comprises a 130mm (5.00”) Dual Concentric™ transducer mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material.  Spring loaded self-aligning clamps make for quick and easy installation, while all models are also supplied with two tile support rails and one C-ring included in the package.

The zinc plated steel back cans have an integrated, recessed termination box. The removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit.

Product Features

  • High power and high sensitivity ceiling monitor system
  • Specifically designed for applications requiring sonic quality for music and speech reinforcement
  • Exceptional reliability and intelligibility
  • Spring loaded self-aligning clamps make for quick and easy installation
  • Equipped with a low insertion loss
  • Available to satisfy the vast majority of installation application requirements

Product Specifications

General

  • Frequency Response (-3db) (1) BM Back can: 85Hz - 50kHz
  • Frequency Range (-10db) (1) BM Back can: 74Hz - 54kHz
  • Frequency Range (-10db) (1) PI Back can: 70Hz - 54kHz
  • System Sensitivity (1W @1m) (2): 89dB (1W = 2.83V for 8 Ohms)
  • Nominal coverage angle: 90 degrees conical
  • Coverage Angle (1khz to 6khz): 109 degrees
  • Directivity factor (q): 5.9 averaged 1kHz to 6kHz
  • Directivity index (di): 6.9 averaged 1kHz to 6kHz
  • Rated maximum spl: Average: 107dB, Peak: 113dB
  • Power handling (3): Average: 60W , Programme: 120W , Peak: 240W
  • Recommended amplifier power: 120W @ 8 Ohms
  • Nominal impedance: 8 Ohms
  • Transformer Taps (via front rotary switch): 70V: 30W / 15W / 7.5W / 3.75W / OFF, & low impedance operation , 100V: 30W / 15W / 7.5W / OFF, & low impedance operation
  • Crossover: 2kHz - 2nd order LF, 2nd order HF, (with dynamic HF protection)
  • Net Weight: 3.90 kg

Transducers

  • Low frequency: 130mm (5.00") Dual Concentric™ constant, directivity driver with multi fibre paper, pulp cone
  • High frequency: 19mm (0.75") titanium dome withm, neodymium magnet system
