COLORado 1 SOLO RGBW LED PAR Fixture 8°-55° Zoom 60W IP65

« return to previous page

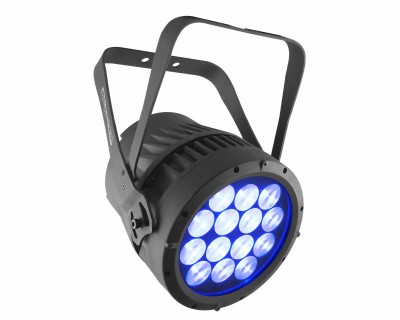

Chauvet Professional COLORado 1 SOLO RGBW LED PAR Fixture 8°-55° Zoom 60W IP65 - Main Image

Chauvet Professional COLORado 1 SOLO RGBW LED PAR Fixture 8°-55° Zoom 60W IP65 - Image 1

Chauvet Professional COLORado 1 SOLO RGBW LED PAR Fixture 8°-55° Zoom 60W IP65 - Image 2

Chauvet Professional COLORado 1 SOLO RGBW LED PAR Fixture 8°-55° Zoom 60W IP65 - Image 3

Chauvet Professional COLORado 1 SOLO RGBW LED PAR Fixture 8°-55° Zoom 60W IP65 - Image 4

Price:: RRP: £504.00 inc VAT
Code:: CHAC1SOLO
Manufacturer Code:: COLORADO1SOLO
Brand:: Chauvet Professional

Main Features

Chauvet PRO COLORado 1 Solo Wash PAR
All-environment performance and advanced optics
Builds on the pedigree of Chauvet's COLORado line of fixtures
RGBW LED wash that projects a homogenized beam
Fast and smooth zooming optics
IP rated power and data connectors and convection cooling

Chauvet Professional - COLORado 1 Solo

The COLORado 1 Solo from Chauvet Professional builds on the pedigree of our COLORado line of fixtures with new all-environment performance and advanced optics. This powerful RGBW LED wash projects an even, fully homogenized beam through fast and smooth zooming optics. Utilizing new IP rated power and data connectors and full convection cooling allows this fixture to perform anywhere from a silent main stage theater to an outdoor summer music festival.

Product Features

Zooming RGBW LED wash for touring, rental and production indoors or out
Completely homogenized wash with superior color mixing and zoom
8° to 55° smooth and fast zoom
All environment operation with IP rated power and DMX connections
Color temperature presets, from 3,200 K to 10,000 K
Selectable, smooth dimming curves for programming versatility
OLED display with password protection

Product Specifications

Optical

Light Source: 1 LEDs (quad-colour RGBW) 60 W, (4 A), 50,000 hours life expectancy
Beam Angle: 4° to 40°
Field Angle: 8° to 55°
Zoom Angle: 8° to 55°
Illuminance (4°): 5,370 lux @ 5 m
Illuminance (40°): 97 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 25 Hz
Standalone Colour Mixing: Yes
Colour Temperature Pre-sets: Yes
Dim Modes: 5Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 1.5 m

Control

Protocol(s): DMX, RDM
DMX Channels: 9, 12 or 17
Modes/Personalities: 5 personalities (HSIC, SSP, TOUR, TR16, STD.Y)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 24 units @ 120 V; 40 units @ 208 V; 45 units @ 230 V
Power and Current: 65 W, 0.548 A @ 120 V, 60 Hz
Power and Current: 62 W, 0.332 A @ 208 V, 60 Hz
Power and Current: 65 W, 0.297 A @ 230 V, 50 Hz

Construction / Physical

Dimensions: 346 x 176 x 242 mm
Weight: 5.4 kg
Exterior Colour: Black
Housing Material: Aluminium die-cast
Accessory Holder/Gel Frame Size: 159 mm
