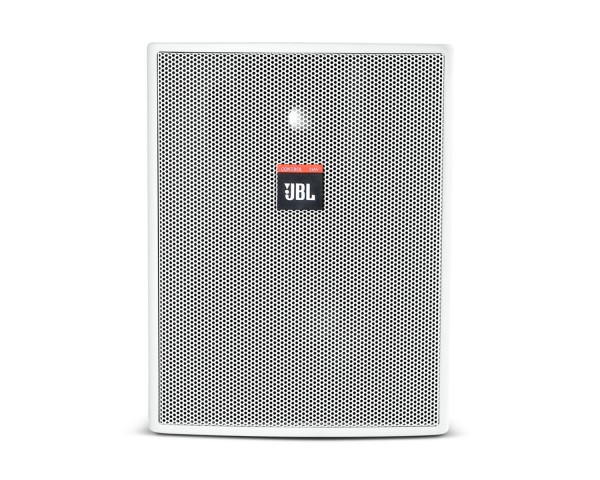

Control 25AV-LS 5.25" Life-Safety Loudspeaker 100V EN54 White

Product Features

• UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems; EN54-24 certified
• EN 54-24 Compliant for Life Safety Applications
• Video shielded for use near video monitors.
• Extremely smooth frequency response.
• Aluminum Grille with Polyester Powder Coating for enduring reliability.
• 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
• SonicGuard™ overload protection.
• 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
• Includes InvisiBall® mounting hardware and sealed input panel cover.
• Screw-down input terminals.
• 105° x 85° high frequency horn.
• Finish: Black

Product Specifications

General

• Frequency Response (-10dB):  90 Hz - 20 kHz
• Power Rating:  200 Watts Continuous Program Power (at 8 ohm bypass mode) 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) 60 Watts (at 60W tap setting)
• Transformer Taps:  60W, 30W, 15W (& 7.5W @ 70V)
• Sensitivity (1W, 1m):  87dB, 1W at 1m (1kHz–10kHz, ave., at 8 ohm bypass mode); 71 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 60W tap)
• Coverage Angle:  110° x 85° (1kHz to 16kHz)
• Directivity Factor (Q):  4.8 (500 Hz to 4kHz)
• Directivity Index (DI):  6.5dB (500 Hz to 4kHz)
• Maximum SPL (1m):  107 dB @ 1m (3.3 ft) average, 113 dB peak, at 8 ohms bypass mode, 89 dB at 4 m (13.2 ft.) average, at 60W tap setting, measured
• Drivers:
  • 130mm (5.25 in) with polypropylene coated paper cone with Weather Edge surround, 25 mm (1 in) voicecoil on kapton former
  • HF: 20mm (.75 in) titanium coated PEI
• Input Connectors:  Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
• Enclosure:  ABS, (materials rated UL94-5VA)
• Grille:  Aluminium with polyester powder coating
• Outdoor Capability:  Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating
• Safety Agency:
  • UL1480-UUMW Listed (S7232)
  • EN54-24:2008 certified (Certificate No. 0359-CPR-00245)
  • NFPA90
  • NFPA70A
  • In accordance with the requirements of IEC60849/EN60849

Physical

• Dimensions (H x W x D):  236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
• Net Weight (each):  3.8 kg (8.4 lbs) ea
• Shipping Weight:  8.6 kg (19 lbs) pair

What's in the Box?

• Control 25AV-LS-WH
• 1 pc MTC-PC2 input panel cover
• Invisiball mounting base
• 6 mm x 100 mm Invisiball hex wrench
