Control 26CT-LS 6.5" Life Safety Ceiling Loudspeaker 75W 100V

« return to previous page

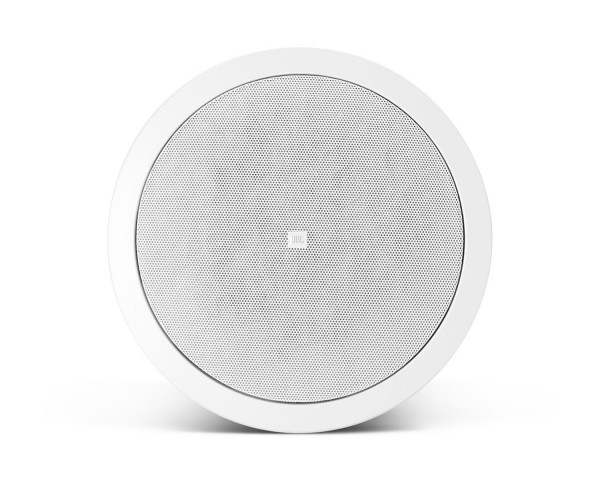

JBL Control 26CT-LS 6.5 Life Safety Ceiling Loudspeaker 75W 100V - Main Image
JBL Control 26CT-LS 6.5 Life Safety Ceiling Loudspeaker 75W 100V - Image 1
JBL Control 26CT-LS 6.5 Life Safety Ceiling Loudspeaker 75W 100V - Image 2
Price:
RRP: £384.00 inc VAT
Code:
JBLC26CTLS
Manufacturer Code:
JBL1148
Brand:
JBL

Quantity required:

Main Features

Product features

  • UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
  • Included Accessories: C-shaped support backing plate 2 tile support rails, Cutout template, Paint shield, Removable locking wiring connector – Euroblock
  • Finish: White
Share:

Control 26CT-LS Ceiling Loudspeaker Assembly for Life Safety Applications

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

Product features

  • UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
  • Included Accessories: C-shaped support backing plate 2 tile support rails, Cutout template, Paint shield, Removable locking wiring connector – Euroblock
  • Finish: White

Product Specifications

General

  • Frequency Range:  80 Hz - 20 kHz
  • Power Rating:
    • IEC System Long-Term Ratings (low-Z direct):
      • 150 Watts Continuous Program Power
      • 75 Watts Continuous Pink Noise (300W peak), 100 hrs
  • Transformer Taps:  60W, 30W, 15W (& 7.5W @ 70V)
  • Coverage Angle:  110° conical
  • Directivity Index (DI):  4.6 averaged 500 Hz to 4 kHz
  • Maximum SPL (1m):  107 dB (top 70V/100V tap)
  • Drivers:  LF Driver: 165 mm (6.5 in)
  • HF Driver: 19 mm (¾ in)
  • Input Connectors:  Removable locking connector with screw-down terminals.
  • Sensitivity (1W, 1m):  89 dB (100 Hz - 10 kHz)

Physical

  • Outside Dimensions (H x Dia):  210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
  • Net Weight (each):  4.2 kg (10 lb)
  • Shipping Weight (pair):  9.7 kg (21 lb)
  • Colour:  White
  • Backcan:  formed steel (included "blind-mount")
  • Baffle/Rim:  Medium impact polystyrene, fire rated UL94V-0
  • Ceiling Cutout Size:  220 mm (8.75 in) diameter (cardboard cutout template included)
  • Included Accessories:  C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector – Euroblock
  • Plenum Usage:  Yes, backcan included
