Control 26-DT 6.5" Ceiling Loudspeaker Transducer Assembly

« return to previous page

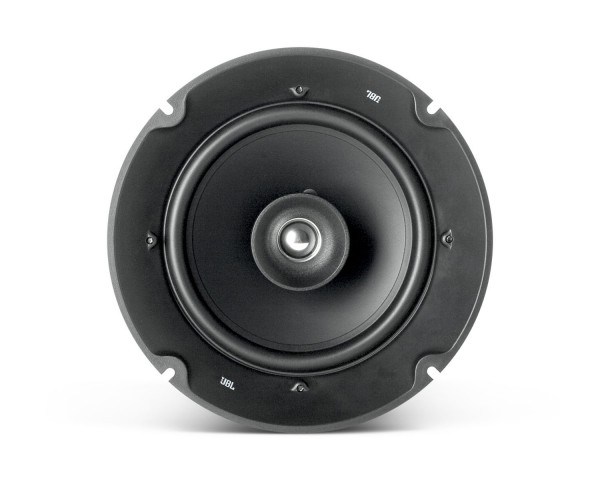

JBL Control 26-DT 6.5 Ceiling Loudspeaker Transducer Assembly - Main Image
JBL Control 26-DT 6.5 Ceiling Loudspeaker Transducer Assembly - Image 1
JBL Control 26-DT 6.5 Ceiling Loudspeaker Transducer Assembly - Image 2
Price:
RRP: £222.00 inc VAT
Code:
JBLC26DT
Manufacturer Code:
JBL0107
Brand:
JBL

Quantity required:

Main Features

  • Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
  • Comes complete with transducer, network and transformer.
  • Advanced crossover network provides natural sound and even coverage throughout listening area.
  • 60 W transformer for 70 V or 100 V distributed speaker lines.
  • Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter.
  • Safety Agency: In accordance with IEC60849 / EN60849.
Share:

Control 26-DT 6.5" Ceiling Loudspeaker Transducer Assembly

The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8") drivers.

Product Feature

  • Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
  • Comes complete with transducer, network and transformer.
  • Advanced crossover network provides natural sound and even coverage throughout listening area.
  • 60 W transformer for 70 V or 100 V distributed speaker lines.
  • Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter.
  • Safety Agency: In accordance with IEC60849 / EN60849.

Product Specifications

General

  • Frequency Range:  80 Hz - 20 kHz
  • Power Rating:  See transformer taps
  • Transformer Taps:  60W, 30W, 15W (& 7.5W @ 70V)
  • Coverage Angle:  90° conical
  • Directivity Index (DI):  4.6 averaged 500 Hz to 4 kHz
  • Maximum SPL (1m):  106 dB (top 70V/100V tap)
  • Drivers:
    • LF Driver: 165 mm (6.5 in)
    • HF Driver: 19 mm (¾ in)
  • Input Connectors:  Screw locking barrier strip for bare wire

Physical

  • Outside Dimensions (H x Dia):  210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
  • Net Weight (each):  4.2 kg (10 lb)
  • Shipping Weight (pair):  9.7 kg (21 lb)
  • Sensitivity (1W, 1m):  89 dB (100 Hz - 10 kHz)
  • Plenum Usage:  Requires third-party plenum rated backcan
