CR16ND Control Rack Fltcase inc DX1616/CONTROL8/CP16/RDnet

« return to previous page

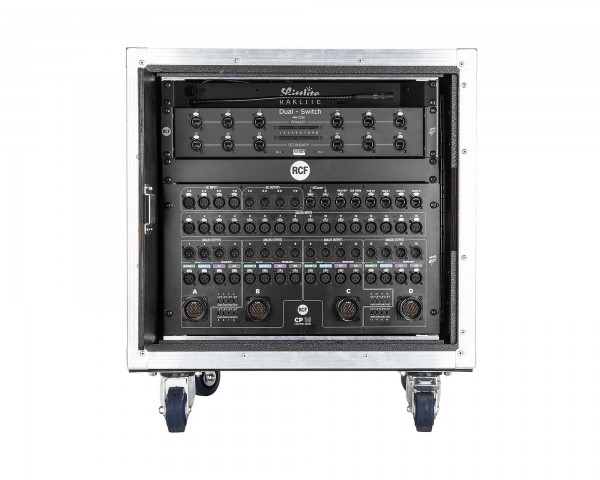

RCF CR16ND Control Rack Fltcase inc DX1616/CONTROL8/CP16/RDnet - Main Image
Price:
RRP: £13,759.20 inc VAT
Code:
RCFCR16ND
Manufacturer Code:
12100004
Brand:
RCF

Quantity required:

Main Features

  • Designed to control the HDL 50-A line array system
  • Includes one Control 8 that manages the RDNet connection to up to 256 devices
  • Each LK 25 has four audio channels, two RDNet channels and two spare sends
  • All of the signals are doubled to the XLR redundant outputs
  • Call us on 01525 850085 to discuss your line-array requirements
  • Large investment? Ask us about our flexible finance opportunities
Share:

CR16ND Control Rack Fltcase inc DX1616/CONTROL8/CP16/RDnet

The CR 16-ND is a 10 Unit flight case designed to control the HDL 50-A line array system. The CR 16-ND includes one Control 8 that manages the RDNet connection to up to 256 devices, one DX 1616 matrix processor that takes care of audio signals routing and processing and one CP 16 control panel to bring audio and control signals to 4 x LK 25 multipin outputs. Each LK 25 has four audio channels, two RDNet channels and two spare sends. Each signal is doubled to XLR redundant outputs.

Dual Switch not included.

Ask RCF and adapt the System to your networking protocol.

Product Features

  •  10 RU flight case on shock mounts
  •  DX 1616 matrix audio processor
  •  CONTROL 8 master unit
  •  CP16 control panel
  •  16 analogue audio inputs, 16 analogue audio outputs
  •  8 AES/EBU inputs - 8 AES/EBU outputs
  •  Dante input
  •  4 x LK 25 multicore audio/RDNet outputs

Product Specifications

General

  • Rack Unit: 10
  • Analog Audio Inputs: 16
  • Analog Audio Outputs: 16
  • AES/EBU Inputs/Outputs: 8
  • Dante Input: Yes
  • Master Unit: 8
  • CE Marking: Yes

Physical & Dimensions

  • Weight: 57 kg / 125.66 lbs

What's in the Box?

  •  1x Control Rack Fltcase inc DX1616/CONTROL8/CP16/RDnet

Product Downloads
