CS154 IP64 Wide-Range Horn Speaker ABS 15W/100V

« return to previous page

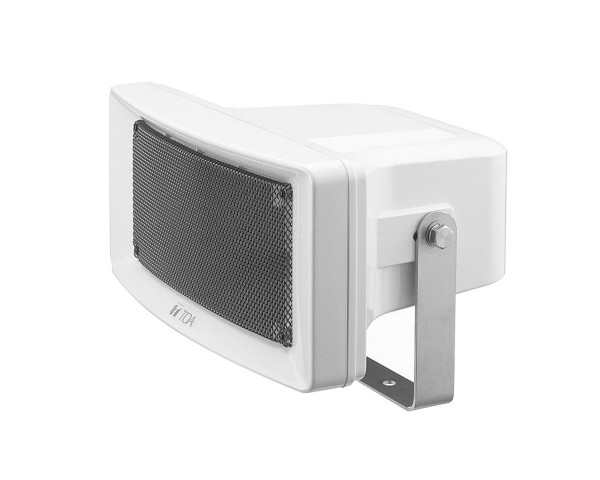

TOA CS154 IP64 Wide-Range Horn Speaker ABS 15W/100V - Main Image
Price:
RRP: £126.00 inc VAT
Code:
TOACD154
Manufacturer Code:
CS-154
Brand:
TOA

Quantity required:

Main Features

  • Exponential horn improves directivity characteristics
  • Lightweight ABS resin enclosure that is mechanically strong
  • Weatherproof polyurethane resin paint
  • Stainless steel hardware protects the speaker from corrosion
  • The enclosure complies with IP-64 Standards
  • Rotary impedance selector switch
Share:

CS-154 IP64 Wide-Range Horn Speaker ABS 15W/100V

The CS-154 outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-154 employs the rotary switch that facilitates impedance changes. It also employs a constant directivity horn for clear sound output over its horizontal range of 90゜operation.

Product Features

  • Exponential horn improves directivity characteristics
  • Lightweight ABS resin enclosure that is mechanically strong
  • Weatherproof polyurethane resin paint
  • Stainless steel hardware protects the speaker from corrosion
  • The enclosure complies with IP-64 Standards
  • Rotary impedance selector switch

Product Specifications

General

  • Rated Input: 15 W
  • Rated Impedance: 100 V line: 670 Ω (15 W). 70 V line: 330 Ω (15 W)
  • Sensitivity: 97 dB (1 W)
  • Frequency Response: 150 - 15,000 Hz
  • Speaker Component: 12 cm cone-type
  • Horizontal Directivity: Constant directivity horn 90゜ (±45゜ horizontal from front axis), 93 dB or more (1 W)
  • Speaker Cord: 2-core cabtyre cord with diameter of 6 mm
  • Operating Temperature: -20℃ to +55℃
  • Dust/Water Protection: IP65

Physical & Dimensions

  • Dimensions: 366 (W) × 230 (H) × 272 (D) mm
  • Weight: 2.8 kg

Product Downloads
