CS64 IP64 Exponential Horn Speaker ABS 100V/6W

« return to previous page

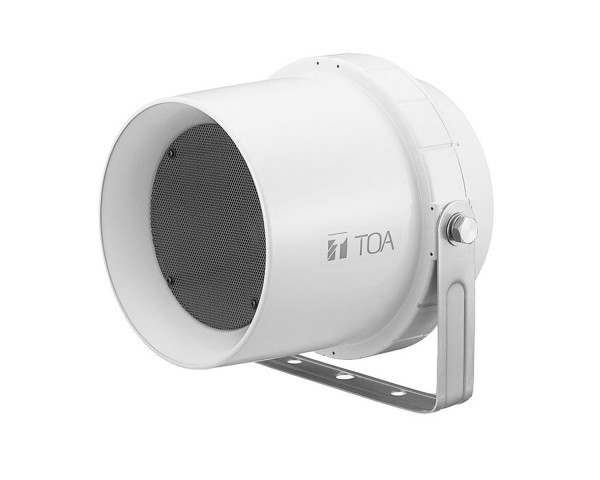

TOA CS64 IP64 Exponential Horn Speaker ABS 100V/6W - Main Image
Price:
RRP: £78.00 inc VAT
Code:
TOACS64
Manufacturer Code:
CS-64
Brand:
TOA

Quantity required:

Main Features

  • Exponential horn improves directivity characteristics
  • Lightweight ABS resin enclosure that is mechanically strong
  • Weatherproof polyurethane resin paint
  • Stainless steel hardware protects the speaker from corrosion
  • The enclosure complies with IP-64 Standards
  • Rotary impedance selector switch
Share:

CS-64 IP64 Exponential Horn Speaker ABS 100V/6W

The CS-64 outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-64 employs the rotary switch that facilitates impedance changes.

Product Features

  • Exponential horn improves directivity characteristics
  • Lightweight ABS resin enclosure that is mechanically strong
  • Weatherproof polyurethane resin paint
  • Stainless steel hardware protects the speaker from corrosion
  • The enclosure complies with IP-64 Standards
  • Rotary impedance selector switch

Product Specifications

General

  • Rated Input: 6 W
  • Rated Impedance: 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W), 70 V line: 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
  • Sensitivity: 96 dB (1 W, 1 m)
  • Frequency Response: 130 - 13,000 Hz
  • Speaker Component: 12 cm cone-type (treated for splash proof)
  • Speaker Cord: 2-core cabtyre cord with diameter of 6 mm
  • Temperature Range: -20℃ to +55℃

Physical & Dimensions

  • Dimensions: 233 (W) × 224 (H) × 208 (D) mm
  • Weight: 1.5 kg
