CS154BS 15W Widerange Speaker EN54 IP65 Rated

« return to previous page

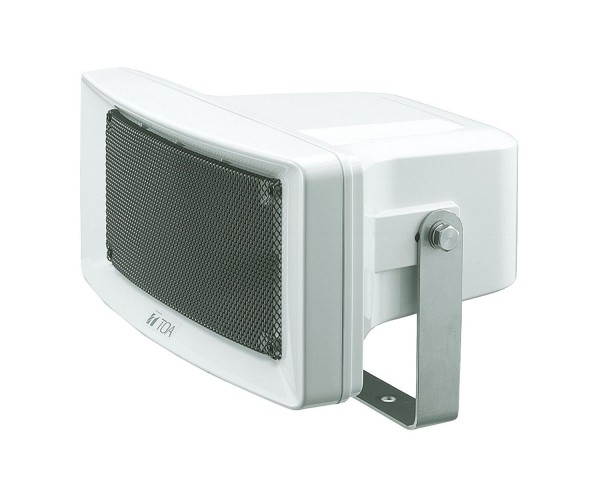

TOA CS154BS 15W Widerange Speaker EN54 IP65 Rated - Main Image
Price:
RRP: £162.00 inc VAT
Code:
TOACS154BS
Manufacturer Code:
CS-154BS
Brand:
TOA

Quantity required:

Main Features

  • Square weatherproof speaker for outdoor use
  • High SPL
  • Impact-proof light weight
  • Stainless steel bracket
  • Certified according to EN 54-24, ISO 7240-24
  • Compliant with BS-5839-8
Share:

CS154BS 15W Wide range Speaker EN54

The CS-154BS is the voice alarm certification product. The CS-154BS Wide range speaker features an ABS resin enclosure and stainless steel bracket for all weather durability. It is comprised of a high-efficiency weather-resistant horn and a high quality sound cone speaker, providing clear and highly directional sound reproduction. The CS-154BS is equipped with a constant directivity horn (90° horizontal) to control sound directivity, realizing uniform and clear sound dispersion over a wide area.

Product Features

  • Square weatherproof speaker for outdoor use
  • High SPL
  • Impact-proof light weight
  • Stainless steel bracket
  • Certified according to EN 54-24, ISO 7240-24
  • Compliant with BS-5839-8

Product Specifications

  • Frequency response:  150 Hz - 15 kHz
  • Connection:  Ceramic screw terminals, thermal fuse, external connection box, 5-wire BS-compliant
  • Sensitivity (1 W, 1 m)
    • 97 dB (330 Hz - 3.3 kHz, pink noise)
    • 94 dB (1 W, 1 m, at 100 Hz to 10 kHz pink noise)
    • 82 dB (1 W, 1 m, at 100 Hz to 10 kHz pink noise)
  • Maximum sound pressure level (1 m) (value):  104 dB
  • Speaker Component: 12 cm cone type (treated for splash proof)
  • Rated input (High Impedance):  15W
  • Tappings:  100 V : 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W)
  • Operating temperature:  -20 ºC to +55 ºC (-4 °F to 131 °F)
  • Finish:  ABS resin, paint, off-white (RAL 9010 or equivalent), Bracket: Stainless steel
  • Dimensions:  366 x 230 x 310 mm (W x H x D)
  • Weight:  3 kg

What's in the Box?

  • 1x Terminal cover
