CS-S10T-B 10" 2-Way Passive Wall Speaker w/ U Bracket 100V Black

« return to previous page

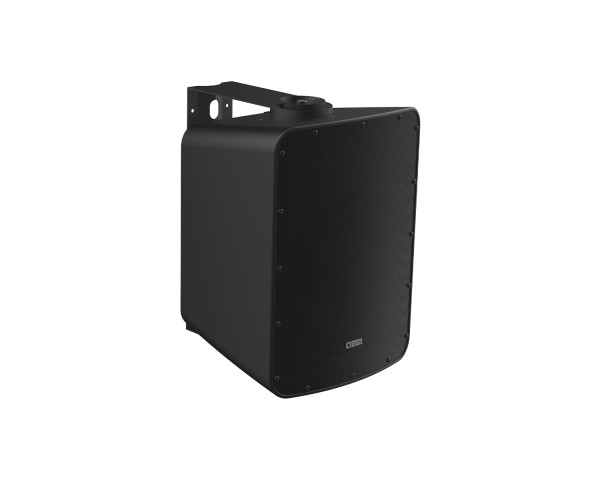

Cloud CS-S10T-B 10 2-Way Passive Wall Speaker w/ U Bracket 100V Black - Main Image
Price:
RRP: £658.80 inc VAT
Code:
CLOCSS10TB
Manufacturer Code:
CS-S10T-B
Brand:
Cloud

Quantity required:

Main Features

  • 10" Woofer (Paper Treated with Cloth Treated Surround)
  • 1" Exit Compression Drive
  • Dual Concentric Design
  • 100v - X/100W/50W/25W/OFF or 8ohm
  • 8Ω Impedance - 250w Continues Power / 375w Peak Power
  • 93dB Sensitivity (1w/1mt) / 118.5dB Max SPL
Share:

CS-S10T-B 10" 2-Way Passive Wall Speaker w/ U Bracket 100V Black

The Cloud CS-S10 is the 10" version of the CS-S Series of high quality 2-way loudspeakers for internal or external fixed installation in leisure and hospitality venues. They are an excellent choice to produce a “front of house” sound when higher  levels and better quality musical reproduction is needed than can be achieved with typical small background music speakers.

Cloud Electronics innovative 10-inch surface mount speakers are a unique product perfect for numerous applications. The chassis is made of LLDPE (Linear low-density polyethylene) making it robust, lightweight and fully recyclable and ideal for outdoor as well as indoor use.

Product Features

  • 10" Woofer (Paper Treated with Cloth Treated Surround)
  • 1" Exit Compression Drive
  • Dual Concentric Design
  • 100v - X/100W/50W/25W/OFF or 8ohm
  • 8Ω Impedance - 250w Continues Power / 375w Peak Power
  • 93dB Sensitivity (1w/1mt) / 118.5dB Max SPL
  • Integrated 1.375" Pole Mount cup and flat ends
  • M6 Mounting Points for 3rd Party Brackets
  • Safety Cable fixing point for Carbine Hooks
  • Optional U-Bracket (CS-BRK810) Black or White, Powder Coated Steel
  • Optional IP66 Plate (CS-IP66) Black or White, Powder Coated Aluminium

Product Specifications

  • Frequency Response (f10):  55 Hz – 20 kHz
  • Impedance:  8 ohm / 70V 100V
  • Crossover Frequency:  1.6 kHz
  • Sensitivity (1w/1m):  93dB
  • Continuous Power:  250W
  • Peak Power:  375W
  • Max SPL:  118.5dB
  • Average Coverage Angle (2k-10k):  95°
  • Amplifier:  n/a
  • Transformer Taps (100v):  100, 50, 25
  • Tweeter:  1" exit compression driver
  • Woofer:  10.0" treated paper with treated cloth surround
  • Enclosure type:  Surface-mounting, vertical or horizontal
  • Enclosure construction:  Linear low-density polyethylene
  • Included accessories:  Mating Euroblock connectors
  • Colour:  Black RAL 9011
  • Dimensions (h x w x d) vertical orientation:  480 mm x 380 mm x 360 mm (18.90” x 14.96” x 14.17”)
  • Weight:  11.37kg
