CS-S12A-W 12" 2-Way Active Wall Speaker w/ U Bracket White

« return to previous page

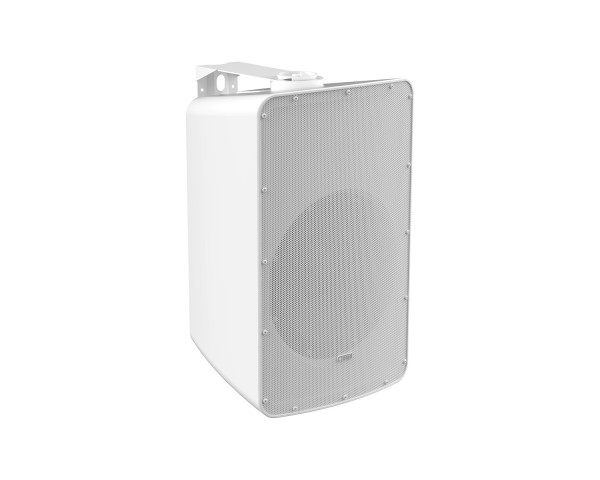

Cloud CS-S12A-W 12 2-Way Active Wall Speaker w/ U Bracket White - Main Image
Price:
RRP: £1,078.80 inc VAT
Code:
CLOCSS12AW
Manufacturer Code:
CS-S12A-W
Brand:
Cloud

Quantity required:

Main Features

  • 12" Woofer (Paper Treated with Cloth Treated Surround)
  • 1" Exit Compression Drive
  • Due Concentric Design
  • ClassD Amplifier and Digital SMPS
  • 300w Continues Power / 450w Peak Power
  • Two balanced analogue mic/line inputs (Neutrik® Combo XLR/ TRS jack and 3-pin Euroblock)
Share:

CS-S12A-W 12" 2-Way Active Wall Speaker w/ U Bracket White

The Cloud CS-S12A is the 12" Active version of the CS-S Series of high quality 2-way loudspeakers for internal or external fixed installation in leisure and hospitality venues. They are an excellent choice to produce a “front of house” sound when higher  levels and better quality musical reproduction is needed than can be achieved with typical small background music speakers.

Cloud Electronics innovative 12-inch surface mount speakers are a unique product perfect for numerous applications. The chassis is made of LLDPE (Linear low-density polyethylene) making it robust, lightweight and fully recyclable and ideal for outdoor as well as indoor use.

Product Features

  • 12" Woofer (Paper Treated with Cloth Treated Surround)
  • 1" Exit Compression Drive
  • Due Concentric Design
  • ClassD Amplifier and Digital SMPS
  • 300w Continues Power / 450w Peak Power
  • Two balanced analogue mic/line inputs (Neutrik® Combo XLR/ TRS jack and 3-pin Euroblock)
  • 5 DSP Pushbutton Presets
  • Dynamic microphones may be connected directly to the inputs • Additional stereo line input on 3.5 mm TRS jack socket
  • Per-input level controls
  • Master level control
  • Balanced line output (XLR and 3-pin Euroblock) for linking to further loudspeakers
  • Mono/stereo operation – R channel is routed to link output for stereo/different programme use
  • Integrated 1.375" Pole Mount cup and flat ends
  • M6 Mounting Points for 3rd Party Brackets
  • Safety Cable fixing point for Carbine Hooks
  • Optional U-Bracket (CS-BRK810) Black or White, Powder Coated Steel

Product Specifications

  • Frequency Response (f10):  50 Hz – 20 kHz
  • Impedance:  8 ohm
  • Crossover Frequency:  1.4 kHz
  • Sensitivity (1w/1m):  96dB
  • Continuous Power:  300W
  • Peak Power:  450W
  • Max SPL:  120dB
  • Average Coverage Angle (2k-10k):  90°
  • Amplifier:  Class D
  • Transformer Taps (100v):  n/a
  • Tweeter:  1" exit compression driver
  • Woofer:  12" treated paper with treated cloth surround
  • Enclosure type:  Surface-mounting, vertical or horizontal
  • Enclosure construction:  Linear low-density polyethylene
  • Included accessories:  Mating Euroblock connectors
  • Colour:  White RAL 9003
  • Dimensions (h x w x d) vertical orientation:  640 mm x 450 mm x 430 mm (25.20” x 17.72” x 16.93”)
  • Weight:  16.09kg
