CS-S12-B 12" 2-Way Passive Wall Speaker w/ U Bracket Black

« return to previous page

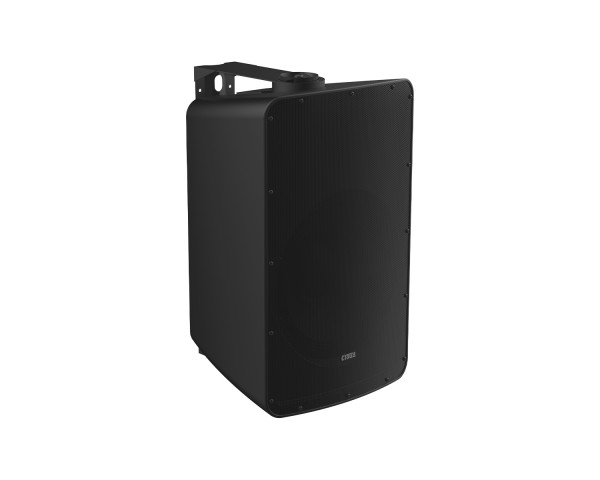

Cloud CS-S12-B 12 2-Way Passive Wall Speaker w/ U Bracket Black - Main Image
Price:
RRP: £718.80 inc VAT
Code:
CLOCSS12B
Manufacturer Code:
CS-S12-B
Brand:
Cloud

Quantity required:

Main Features

  • 12" Woofer (Paper Treated with Cloth Treated Surround)
  • 1" Exit Compression Drive
  • Dual Concentric Design
  • 8Ω Impedance - 300w Continues Power / 450w Peak Power
  • 96dB Sensitivity (1w/1mt) / 122dB Max SPL
  • Integrated 1.375" Pole Mount cup and flat ends
Share:

CS-S12-B 12" 2-Way Passive Wall Speaker w/ U Bracket Black

The Cloud CS-S12 is the 12" version of the CS-S Series of high quality 2-way loudspeakers for internal or external fixed installation in leisure and hospitality venues. They are an excellent choice to produce a “front of house” sound when higher  levels and better quality musical reproduction is needed than can be achieved with typical small background music speakers.

Cloud Electronics innovative 12-inch surface mount speakers are a unique product perfect for numerous applications. The chassis is made of LLDPE (Linear low-density polyethylene) making it robust, lightweight and fully recyclable and ideal for outdoor as well as indoor use.

Product Features

  • 12" Woofer (Paper Treated with Cloth Treated Surround)
  • 1" Exit Compression Drive
  • Dual Concentric Design
  • 8Ω Impedance - 300w Continues Power / 450w Peak Power
  • 96dB Sensitivity (1w/1mt) / 122dB Max SPL
  • Integrated 1.375" Pole Mount cup and flat ends
  • M6 Mounting Points for 3rd Party Brackets
  • Safety Cable fixing point for Carbine Hooks
  • Optional U-Bracket (CS-BRK810) Black or White, Powder Coated Steel
  • Optional IP66 Plate (CS-IP66) Black or White, Powder Coated Aluminium

Product Specifications

  • Frequency Response (f10):  50 Hz – 20 kHz
  • Impedance:  8 ohm
  • Crossover Frequency:  1.4 kHz
  • Sensitivity (1w/1m):  96dB
  • Continuous Power:  300W
  • Peak Power:  450W
  • Max SPL:  122dB
  • Average Coverage Angle (2k-10k):  90°
  • Amplifier:  n/a
  • Transformer Taps (100v):  n/a
  • Tweeter:  1" exit compression driver
  • Woofer:  12" treated paper with treated cloth surround
  • Enclosure type:  Surface-mounting, vertical or horizontal
  • Enclosure construction:  Linear low-density polyethylene
  • Included accessories:  Mating Euroblock connectors
  • Colour:  Black RAL 9011
  • Dimensions (h x w x d) vertical orientation:  640 mm x 450 mm x 430 mm (25.20” x 17.72” x 16.93”)
  • Weight:  15.43kg

Product Downloads
