CS-S8AD-W 8" 2-Way Active Wall Speaker w/ U Bracket Dante White

« return to previous page

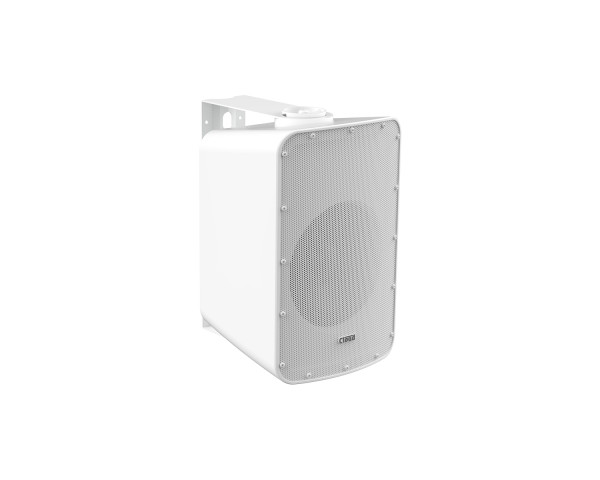

Cloud CS-S8AD-W 8 2-Way Active Wall Speaker w/ U Bracket Dante White - Main Image
Price:
RRP: £958.80 inc VAT
Code:
CLOCSS8DW
Manufacturer Code:
CS-S8D-W
Brand:
Cloud

Quantity required:

Main Features

  • 8" Woofer (Paper Treated with Cloth Treated Surround)
  • 1" Exit Compression Drive
  • Dual Concentric Design
  • ClassD Amplifier and Digital SMPS
  • Standard RJ45 Ethernet socket for direct connection to Dante™ network
  • AES67 compatible
Share:

CS-S8AD-W 8" 2-Way Active Wall Speaker w/ U Bracket Dante White

The Cloud CS-S8AD is the 8" Active Dante version of the CS-S Series of high quality 2-way loudspeakers for internal or external fixed installation in leisure and hospitality venues. They are an excellent choice to produce a “front of house” sound when higher  levels and better quality musical reproduction is needed than can be achieved with typical small background music speakers.

Cloud Electronics innovative 8-inch surface mount speakers are a unique product perfect for numerous applications. The chassis is made of LLDPE (Linear low-density polyethylene) making it robust, lightweight and fully recyclable and ideal for outdoor as well as indoor use.

Product Features

  • 8" Woofer (Paper Treated with Cloth Treated Surround)
  • 1" Exit Compression Drive
  • Dual Concentric Design
  • ClassD Amplifier and Digital SMPS
  • Standard RJ45 Ethernet socket for direct connection to Dante™ network
  • AES67 compatible
  • 200w Continues Power / 300w Peak Power
  • 5 DSP Pushbutton Presets
  • Master level control
  • Balanced line output (XLR and 3-pin Euroblock) for linking to further loudspeakers
  • Mono/stereo operation – R channel is routed to link output for stereo/different programme use
  • Integrated 1.375" Pole Mount cup and flat ends
  • M6 Mounting Points for 3rd Party Brackets
  • Safety Cable fixing point for Carbine Hooks
  • Optional U-Bracket (CS-BRK810) Black or White, Powder Coated Steel

Product Specifications

  • Frequency Response (f10):  60 Hz – 20 kHz
  • Impedance:  8 ohm
  • Crossover Frequency:  1.9 kHz
  • Sensitivity (1w/1m):  92dB
  • Continuous Power:  200W
  • Peak Power:  300W
  • Max SPL:  116dB
  • Average Coverage Angle (2k-10k):  100°
  • Amplifier:  n/a
  • Transformer Taps (100v):  n/a
  • Tweeter:  1" exit compression driver
  • Woofer:  8.0" treated paper with treated cloth surround
  • Enclosure type:  Surface-mounting, vertical or horizontal
  • Enclosure construction:  Linear low-density polyethylene
  • Included accessories:  Mating Euroblock connectors
  • Colour:  White RAL 9003
  • Dimensions (h x w x d) vertical orientation:  429 mm x 273 mm x 265 mm (16.89” x 10.75” x 10.43”)
  • Weight:  8.76kg
