Main Features
Discreet size, high performance
Portrait or landscape mounting options
Wall bracket included
Max SPL 98dB (continuous) 104dB (peak)
130° horizontal x 120° vertical coverage
IP54 for outdoor use with accessory terminal cover

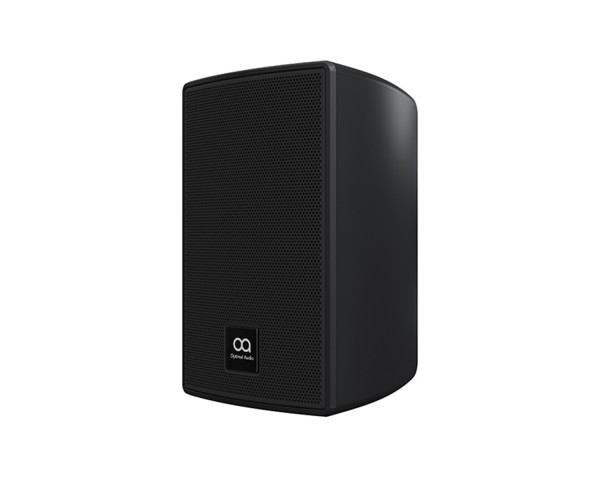

Cuboid 3 Two-Way 3" Passive Loudspeaker 30W @ 8Ω Black
Cuboid 3 is a full range, two way, passive 3” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.
With its attractive design and included mounting hardware, Cuboid 3 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid 3 features a 3.5” low frequency driver and a 0.5” PEI dome high frequency driver mated to a shallow wave guide for consistent HF distribution.
When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.
Product Features
Discreet size, high performance
Portrait or landscape mounting options
Wall bracket included
Max SPL 98dB (continuous) 104dB (peak)
130° horizontal x 120° vertical coverage
IP54 for outdoor use with accessory terminal cover
Product Specifications
Type: Two-way, full range, passive 3” loudspeaker
Frequency Response (when used with preset): 125Hz - 20kHz +/-3dB, -10dB @ 80Hz
Drivers
LF: 3.5”(90mm) coated paper, ferrite motor system.
HF: 0.5” (12.5mm) PEI Diaphragm neodymium motor system
IP Rating: IP54 when used with accessory terminal cover
Rated Power: 30 W (AES) 120W (peak)
Nominal Impedance: 8Ω
Sensitivity (1W/1m): 84dB
Maximum SPL @1m: 98dB (cont) 104dB (peak)
Crossover: 3kHz
Dispersion (-6dB): 130°H x 120°V
Enclosure: ABS
Finish: Paint (Black)
Protective Grille: Painted Aluminium
Connectors: 4 pin Euroblock
Pin Connections (Input): Positive and negative in with link out terminals
Fittings: M4 mounting points for wall bracket
Dimensions: (W)120mm x (H)190mm x (D)118mm (W)4.7” x (H)7.5” x (D)4.7”
