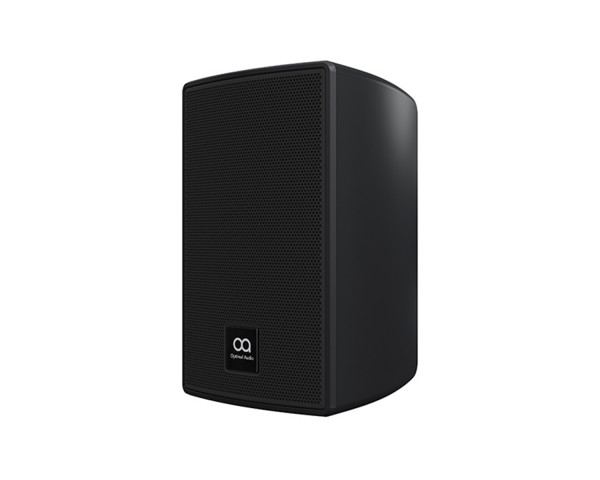

Cuboid 3TX is a full range, two way, passive 3” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.
With its attractive design and included mounting hardware, Cuboid 3TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid 3TX features a 3.5” low frequency driver and a 0.5” PEI dome high frequency driver mated to a shallow wave guide for consistent HF distribution.
Each Cuboid 3TX can be run on a series of 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.
When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.
Product Features
8 ohm or 70/100V line operation
Discreet size, high performance
Portrait or landscape mounting options
Wall bracket included
Max SPL 98dB (continuous) 104dB (peak)
130° horizontal x 120° vertical coverage
IP54 for outdoor use with accessory terminal cover
Product Specifications
Type: Two-way, full range, passive 3” loudspeaker
Frequency Response (when used with preset): 125Hz - 20kHz +/-3dB, -10dB @ 80Hz
Drivers
LF: 3.5”(90mm) coated paper, ferrite motor system.
HF: 0.5” (12.5mm) PEI Diaphragm neodymium motor system
IP Rating: IP54 when used with accessory terminal cover
Rated Power: 30 W (AES) 120W (peak)
Nominal Impedance: 8Ω
Sensitivity (1W/1m): 84dB
Maximum SPL @1m: 98dB (cont) 104dB (peak)
Crossover: 3kHz
Dispersion (-6dB): 130°H x 120°V
Enclosure: ABS
Finish: Paint (Black)
Protective Grille: Painted Aluminium
Connectors: 4 pin Euroblock
Pin Connections (Input): Positive and negative in with link out terminals
Fittings: M4 mounting points for wall bracket
Dimensions: (W)120mm x (H)190mm x (D)118mm (W)4.7” x (H)7.5” x (D)4.7”
