Cuboid 6TX Two-Way 6.5

Price:: RRP: £186.00 inc VAT
Code:: OPACUBOID6TW
Manufacturer Code:: CUBOID6-WTX
Brand:: Optimal Audio

Main Features

Discreet size, high performance
IP54 for outdoor use with accessory terminal cover
Wall bracket included
Max SPL 107dB (cont) 113dB (peak)
130° horizontal x 120° vertical coverage
8 ohm or 70/100V line operation

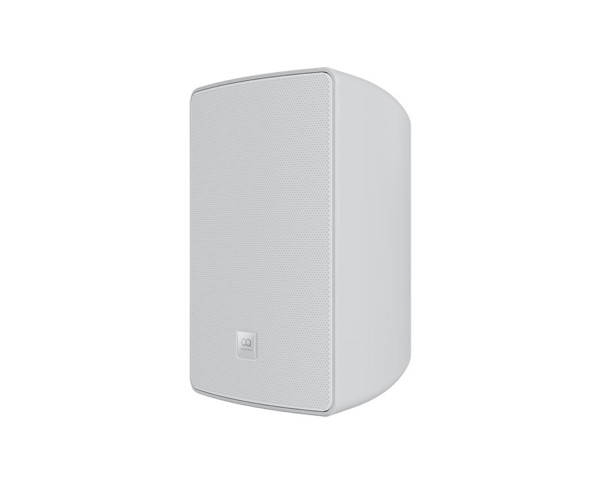

Cuboid 6TX Two-Way 6.5" Passive Loudspeaker 60W @ 8Ω 100V White

Cuboid 6TX is a full range, two way, passive 6.5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction. 

With its attractive design and included mounting hardware, Cuboid 6TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54. 

Cuboid 6TX features a 6.5” low frequency driver and a 1” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.

Each Cuboid 6TX has an improved 60w transformer which enables the delivery of premium sound when installed on 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet. 

For enhanced bass performance, Cuboid 6TX can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.

When coupled with Zone and WebApp, system set up and end user control is straight forward, and can be further supplemented by ZonePad wall controllers.

Product Features

Discreet size, high performance
IP54 for outdoor use with accessory terminal cover
Wall bracket included
Max SPL 107dB (cont) 113dB (peak)
130° horizontal x 120° vertical coverage
8 ohm or 70/100V line operation
Portrait or landscape mounting options

Product Specifications

Type: Two-way, full range, passive 6.5” loudspeaker with transformer
Frequency Response (with preset): 90Hz – 20kHz +/-3dB, -10dB @ 70Hz
Drivers:
- LF: 6.5”(165mm) coated paper, ferrite motor system
- HF: 1” (25.4mm) Silk Dome, neodymium motor system
IP Rating: IP54 when used with accessory terminal cover
Rated Power: 60 W (AES) 240W (peak)
Nominal Impedance: 8 Ohms
Sensitivity (1W/1m): 89dB
Maximum SPL: 107dB (cont) 113dB (peak) @ 8Ω
Crossover: 3.4kHz
Recommended High Pass Filter: 24dB Per Octave @ 50 Hz
Transformer Taps @ 70v: 3.75, 7.5, 15, 30W
Transformer Taps @ 100v: 7.5, 15, 30, 60W
Dispersion (-6dB): 130°H x 120°V
Enclosure: ABS
Finish: White finish
Protective Grille: Painted Aluminium
Connectors: 4 pin Euroblock
PIN Connections (INPUT): Positive and negative in with link out terminals
Fittings: M4 mounting points for wall bracket
Dimensions:
- (W)200 x (H)320 x (D)190mm
- (W)7.9” x (H)12.6” x (D)7.5”
Weight: 3.82kg (8.4lb)
