Cuboid 6 Two-Way 6.5

Price:: RRP: £156.00 inc VAT
Code:: OPACUBOID6W
Manufacturer Code:: CUBOID6-W
Brand:: Optimal Audio

Main Features

Discreet size, high performance
Portrait or landscape mounting options
Wall bracket included
Max SPL 105dB (continuous) 111dB (peak)
130° horizontal x 120° vertical coverage
IP54 for outdoor use with accessory terminal cover

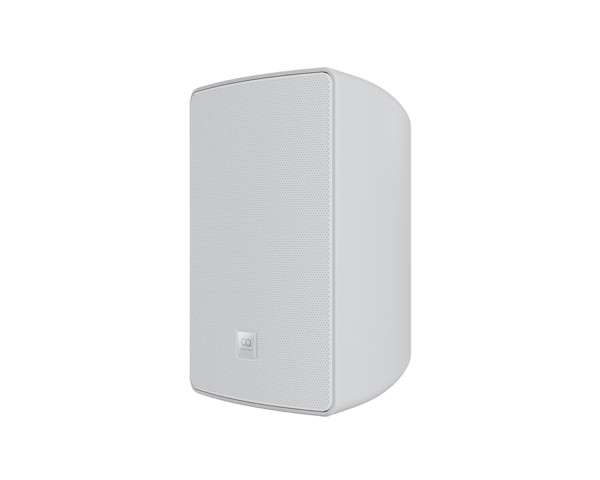

Cuboid 6 Two-Way 6.5" Passive Loudspeaker 60W @ 8Ω White

Cuboid 6 is a full range, two way, passive 6.5” loudspeaker designed to give exceptional sound quality in a compact form factor, for distributed applications with high quality background music and speech reproduction. 

With its attractive design and included mounting hardware, Cuboid 6 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.

Cuboid 6 features a 6.5” low frequency driver and a 1” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution. 

For enhanced bass performance, Cuboid 6 can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.

When teamed with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.

Product Features

Discreet size, high performance
Portrait or landscape mounting options
Wall bracket included
Max SPL 105dB (continuous) 111dB (peak)
130° horizontal x 120° vertical coverage
IP54 for outdoor use with accessory terminal cover

Product Specifications

Type: Two-way, full range, passive 6.5” loudspeaker
Frequency Response (with preset): 90Hz – 20kHz +/-3dB, -10dB @ 70Hz
Drivers:
- LF: 6.5”(165mm) coated paper, ferrite motor system
- HF: 1” (25.4mm) Silk Dome, neodymium motor system
IP Rating: IP54 when used with accessory terminal cover
Rated Power: 60 W (AES) 240W (peak)
Nominal Impedance: 8 Ohms
Sensitivity (1W/1m): 89dB
Maximum SPL: 107dB (cont) 113dB (peak) @ 8Ω
Crossover: 3.4kHz
Recommended High Pass Filter: 24dB Per Octave @ 50 Hz
Dispersion (-6dB): 130°H x 120°V
Enclosure: ABS
Finish: White finish
Protective Grille: Painted Aluminium
Connectors: 4 pin Euroblock
PIN Connections (INPUT): Positive and negative in with link out terminals
Fittings: M4 mounting points for wall bracket
Dimensions:
- (W)200 x (H)320 x (D)190mm
- (W)7.9” x (H)12.6” x (D)7.5”
Weight: 3.82kg (8.4lb)
