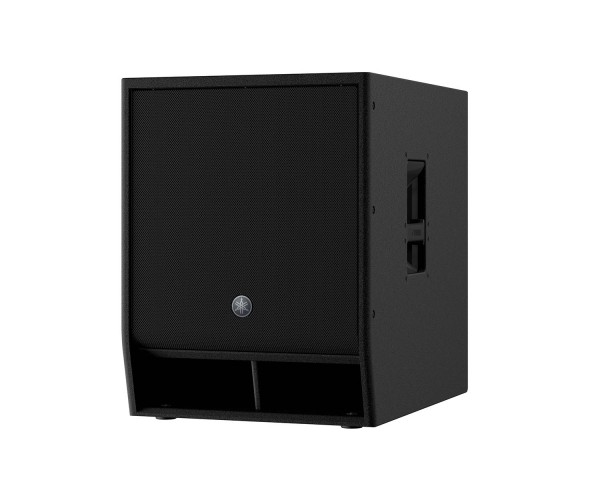

CXS15XLF Passive 15" Subwoofer with 4” Voice Coil 800W Black

« return to previous page
Yamaha CXS15XLF Passive 15 Subwoofer with 4” Voice Coil 800W Black - Main Image
Yamaha CXS15XLF Passive 15 Subwoofer with 4” Voice Coil 800W Black - Image 1
Yamaha CXS15XLF Passive 15 Subwoofer with 4” Voice Coil 800W Black - Image 2
Yamaha CXS15XLF Passive 15 Subwoofer with 4” Voice Coil 800W Black - Image 3
Yamaha CXS15XLF Passive 15 Subwoofer with 4” Voice Coil 800W Black - Image 4
Yamaha CXS15XLF Passive 15 Subwoofer with 4” Voice Coil 800W Black - Image 5
Yamaha CXS15XLF Passive 15 Subwoofer with 4” Voice Coil 800W Black - Image 6
Price:
RRP: £1,279.20 inc VAT
Code:
YAMCXS15XLF
Manufacturer Code:
CXS 15 XLF
Brand:
Yamaha

Quantity required:

Main Features

  • 15" subwoofer with 4" Voice Coil
  • High power 800W (PGM) input
  • Cardioid mode capable with processors or DSP onboard power amps
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • SpeakON NL4MP x 3 (Parallel x 2, Output x 1)
  • Dual-pole socket
Share:

CXS15XLF Passive 15" Subwoofer with 4” Voice Coil 800W Black

Perfectly suited for use with CZR full-range speakers, the CXS15XLF / CXCXS15XLFW is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 130dB SPL performance.

Product Features

  • 15" subwoofer with 4" Voice Coil
  • High power 800W (PGM) input
  • Cardioid mode capable with processors or DSP onboard power amps
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • SpeakON NL4MP x 3 (Parallel x 2, Output x 1)
  • Dual-pole socket
  • Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
  • Durable black or white finish

Product Specifications

General

  • Speaker Type:  Subwoofer, Bass-reflex
  • Frequency Range (-10dB):  Passive: 33Hz - 3.5kHz, Normal (*1): 35Hz - 150Hz, Extend (*1): 33Hz - 150Hz
  • Components:  LF 15" Cone, 4" Voice Coil, Ferrite magnet
  • Power Rating
    • NOISE: 400W (EIA 426-A)
    • PGM: 800W (EIA 426-A)
    • PEAK: 1600W (EIA 426-A)
  • Nominal Impedance:  8Ω
  • SPL
    • Sensitivity (1W; 1m on axis):  98dB *2
    • Peak (Calculated):  130dB *2
  • I/O Connectors:  SpeakON NL4MP x 3 (Parallel x 2, Output x 1)

Physical

  • Handle:  Aluminium die-cast, Side x 2
  • Pole Socket:  Ø35mm (depth 80mm), M20 Threaded (depth 25mm)
  • Dimensions (W x H x D):  450mm x 587mm (with rubber feet) x 720mm (17.7" x 23.1" x 23.6")
  • Net Weight:  35.6kg (78.5lbs)
  • Options:  Cover: SPCVR-DXS15X, Caster: SPW-1
  • Others:  Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White

*1 With recommended DSP processing.

*2 Half space (2π).
