CZR15 Passive 2-Way Loudspeaker 15

« return to previous page

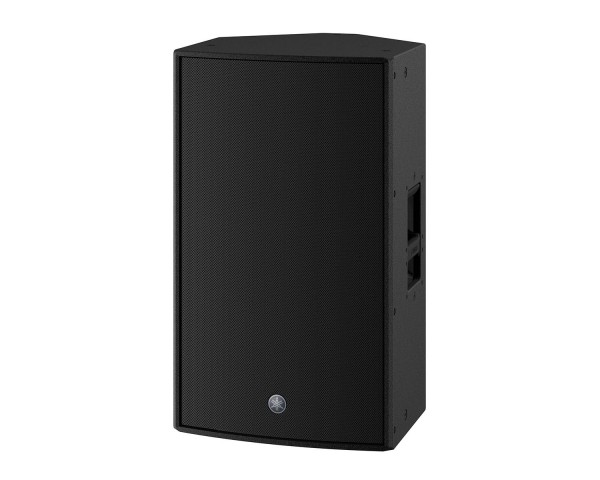

Yamaha CZR15 Passive 2-Way Loudspeaker 15 LF + 2 HF Black - Image 1

Yamaha CZR15 Passive 2-Way Loudspeaker 15 LF + 2 HF Black - Image 2

Yamaha CZR15 Passive 2-Way Loudspeaker 15 LF + 2 HF Black - Image 3

Yamaha CZR15 Passive 2-Way Loudspeaker 15 LF + 2 HF Black - Image 4

Yamaha CZR15 Passive 2-Way Loudspeaker 15 LF + 2 HF Black - Image 5

Price:: RRP: £1,428.00 inc VAT
Code:: YAMCZR15
Manufacturer Code:: CZR 15
Brand:: Yamaha

Main Features

2-way loudspeaker with a 2" HF and a 15" LF
Features Yamaha’s own Wide Dispersion CD Waveguide Horn
High power 800W (PGM) power handling and Bi-amp capable
Floor monitoring setting enables mirroring configuration
Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
Dual-angle pole socket

CZR15 Passive 2-Way Loudspeaker 15" LF + 2" HF Black

The CZR15/CZR15W is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR15/CZR15W ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

Product Features

2-way loudspeaker with a 2" HF and a 15" LF
Features Yamaha’s own Wide Dispersion CD Waveguide Horn
High power 800W (PGM) power handling and Bi-amp capable
Floor monitoring setting enables mirroring configuration
Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
Dual-angle pole socket
Optional speaker cover (SPCVR-DZR15)
Rotatable horn and variety of U-bracket options (UB-DZR15H/V) for rigging allow for very flexible setup and speaker placement
Durable black or white finish

Product Specifications

General

Speaker Type: 2-way Speaker, Bass-reflex
Frequency Range (-10dB): Passive: 43Hz - 20kHz, Normal (*1): 34Hz - 20kHz, FOH (*1): 33Hz - 20kHz
Coverage Area: H90° x V50° Rotatable Constant Directivity Horn
Floor Monitor Angle: 50° Symmetrical
Components
- LF 15" Cone, 3" Voice Coil, Neodymium magnet
- HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 2.0kHz
Power Rating
- NOISE Passive (EIA 426-A): 400W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W
- PGM Passive (EIA 426-A): 800W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W
- PEAK Passive (EIA 426-A): 1600W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W
Nominal Impedance: Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
SPL
- Sensitivity (1W; 1m on axis) Passive: 97dB SPL, Bi-amp: LF: 99dB SPL, HF: 108dB SPL
- Peak (Calculated) Passive: 129 dB SPL, Bi-amp: LF: 131dB SPL, HF: 131dB SPL
I/O Connectors: SpeakON NL4MP x 2 (Parallel)

Physical

Handle: Aluminium die-cast, Side x 2
Pole Socket: Ø35mm x 2 (0° or -7°)
Rigging: M10 x 12
Dimensions (W x H x D): 450mm x 761mm (with rubber feet) x 460mm (17.7" x 30.0" x 18.1")
Net Weight: 21.3kg (47.0lbs)
Options: Bracket: UB-DZR15H/V, Cover: SPCVR-DZR15
Others: Enclosure Material, Finish, Colour: Plywood, Durable Polyurea coating, Black/White

*1 With recommended DSP processing.

*2 Half space (2π).
