CZR15W Passive 2-Way Loudspeaker 15" LF + 2" HF White

« return to previous page

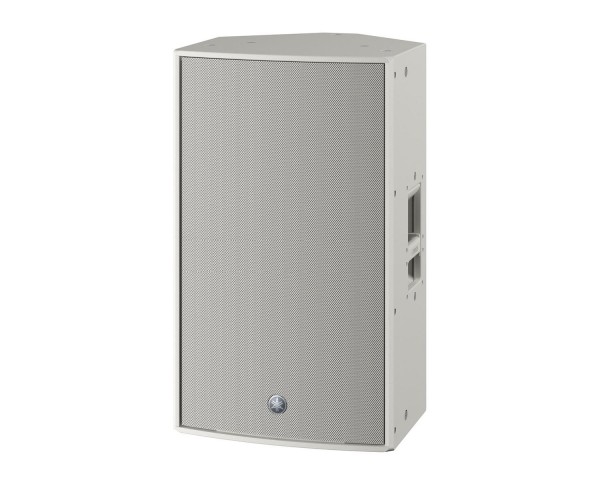

Yamaha CZR15W Passive 2-Way Loudspeaker 15 LF + 2 HF White - Main Image
Yamaha CZR15W Passive 2-Way Loudspeaker 15 LF + 2 HF White - Image 1
Yamaha CZR15W Passive 2-Way Loudspeaker 15 LF + 2 HF White - Image 2
Price:
RRP: £1,528.80 inc VAT
Code:
YAMCZR15W
Manufacturer Code:
VDD6370
Brand:
Yamaha

Quantity required:

Main Features

  • 2-way loudspeaker with a 2" HF and a 15" LF
  • Features Yamaha’s own Wide Dispersion CD Waveguide Horn
  • High power 800W (PGM) power handling and Bi-amp capable
  • Floor monitoring setting enables mirroring configuration
  • Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
  • Dual-angle pole socket
Share:

CZR15W Passive 2-Way Loudspeaker 15" LF + 2" HF White

The CZR15/CZR15W is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR15/CZR15W ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

Product Features

  • 2-way loudspeaker with a 2" HF and a 15" LF
  • Features Yamaha’s own Wide Dispersion CD Waveguide Horn
  • High power 800W (PGM) power handling and Bi-amp capable
  • Floor monitoring setting enables mirroring configuration
  • Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
  • Dual-angle pole socket
  • Optional speaker cover (SPCVR-DZR15)
  • Rotatable horn and variety of U-bracket options (UB-DZR15H/V) for rigging allow for very flexible setup and speaker placement
  • Durable black or white finish

Product Specifications

General

  • Speaker Type:  2-way Speaker, Bass-reflex
  • Frequency Range (-10dB):  Passive: 43Hz - 20kHz, Normal (*1): 34Hz - 20kHz, FOH (*1): 33Hz - 20kHz
  • Coverage Area:  H90° x V50° Rotatable Constant Directivity Horn
  • Floor Monitor Angle:  50° Symmetrical
  • Components
    • LF 15" Cone, 3" Voice Coil, Neodymium magnet
    • HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
  • Crossover:  2.0kHz
  • Power Rating
    • NOISE Passive (EIA 426-A): 400W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W
    • PGM Passive (EIA 426-A): 800W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W
    • PEAK Passive (EIA 426-A): 1600W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W
  • Nominal Impedance:  Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
  • SPL
    • Sensitivity (1W; 1m on axis) Passive: 97dB SPL, Bi-amp: LF: 99dB SPL, HF: 108dB SPL
    • Peak (Calculated) Passive: 129 dB SPL, Bi-amp: LF: 131dB SPL, HF: 131dB SPL
  • I/O Connectors:  SpeakON NL4MP x 2 (Parallel)

Physical

  • Handle:  Aluminium die-cast, Side x 2
  • Pole Socket:  Ø35mm x 2 (0° or -7°)
  • Rigging:  M10 x 12
  • Dimensions (W x H x D):  450mm x 761mm (with rubber feet) x 460mm (17.7" x 30.0" x 18.1")
  • Net Weight:  21.3kg (47.0lbs)
  • Options:  Bracket: UB-DZR15H/V, Cover: SPCVR-DZR15
  • Others:  Enclosure Material, Finish, Colour: Plywood, Durable Polyurea coating, Black/White

*1 With recommended DSP processing.

*2 Half space (2π).
