CZR10W Passive 2-Way Loudspeaker 10

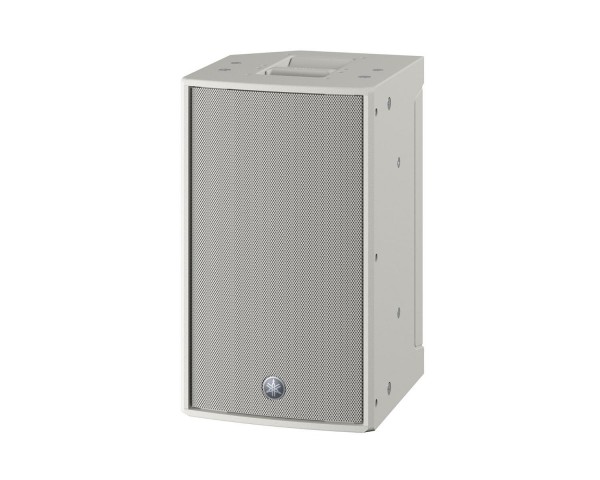

Yamaha CZR10W Passive 2-Way Loudspeaker 10 LF + 2 HF White - Image 2

Price:: RRP: £1,365.60 inc VAT
Code:: YAMCZR10W
Manufacturer Code:: CZR 10W
Brand:: Yamaha

Main Features

2-way loudspeaker with a 2" HF and a 10" LF
Features Yamaha’s own Wide Dispersion CD Waveguide Horn
High power 700W (PGM) power handling and Bi-amp capable
Floor monitoring setting enables mirroring configuration
Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
Dual-angle pole socket

CZR10W Passive 2-Way Loudspeaker 10" LF + 2" HF White

The CZR10/CZR10W is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR10/CZR10W ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

Product Features

2-way loudspeaker with a 2" HF and a 10" LF
Features Yamaha’s own Wide Dispersion CD Waveguide Horn
High power 700W (PGM) power handling and Bi-amp capable
Floor monitoring setting enables mirroring configuration
Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
Dual-angle pole socket
Optional speaker cover (SPCVR-DZR10)
Rotatable horn and variety of U-bracket options (UB-DZR10H/V) for rigging allow for very flexible setup and speaker placement
Durable black or white finish

Product Specifications

General

Speaker Type: 2-way Speaker, Bass-reflex
Frequency Range (-10dB): Passive: 43Hz - 20kHz, Normal (*1): 46Hz - 20kHz, FOH (*1): 43Hz - 20kHz
Coverage Area: H90° x V60° Rotatable Constant Directivity Horn
Floor Monitor Angle: 50°
Components
- LF 10" Cone, 3" Voice Coil, Neodymium magnet
- HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 2.5kHz
Power Rating
- NOISE Passive (EIA 426-A): 350W, Bi-amp LF (EIA 426-A): 350W, HF (AES): 50W
- PGM Passive (EIA 426-A): 700W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W
- PEAK Passive (EIA 426-A): 1400W, Bi-amp LF (EIA 426-A): 1400W, HF (AES): 200W
Nominal Impedance: Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
SPL
- Sensitivity (1W; 1m on axis) Passive: 95dB SPL, Bi-amp: LF: 95dB SPL, HF: 108dB SPL
- Peak (Calculated) Passive: 127dB SPL, Bi-amp: LF: 127dB SPL, HF: 131dB SPL
I/O Connectors: SpeakON NL4MP x 2 (Parallel)

Physical

Handle: Aluminium die-cast, Top x 1, Side x 1
Pole Socket: Ø35mm x 2 (0° or -7°)
Rigging: M10 x 8, M8 x 2
Dimensions (W x H x D): 315mm x 537mm (with rubber feet) x 345mm (12.4" x 21.1" x 13.6")
Net Weight: 14.0kg (30.9lbs)
Options: Bracket: UB-DZR10H/V, Cover: SPCVR-DZR10
Others: Enclosure Material, Finish, Colour: Plywood, Durable Polyurea coating, Black/White

*1 With recommended DSP processing.

*2 Half space (2π).
