CBR10 Moulded Plastic 10" 2-Way Passive Speaker 175W

« return to previous page

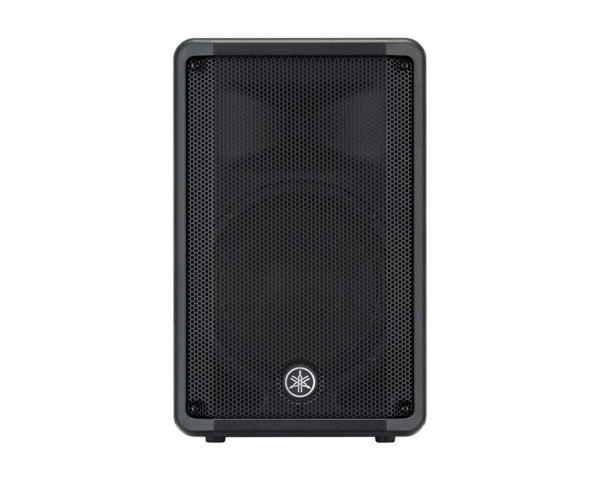

Yamaha CBR10 Moulded Plastic 10 2-Way Passive Speaker 175W - Main Image
Yamaha CBR10 Moulded Plastic 10 2-Way Passive Speaker 175W - Image 1
Yamaha CBR10 Moulded Plastic 10 2-Way Passive Speaker 175W - Image 2
Yamaha CBR10 Moulded Plastic 10 2-Way Passive Speaker 175W - Image 3
Yamaha CBR10 Moulded Plastic 10 2-Way Passive Speaker 175W - Image 4
Yamaha CBR10 Moulded Plastic 10 2-Way Passive Speaker 175W - Image 5
Yamaha CBR10 Moulded Plastic 10 2-Way Passive Speaker 175W - Image 6
Price:
RRP: £450.00 inc VAT
Code:
YAMCBR10
Manufacturer Code:
CBR 10
Brand:
Yamaha

Quantity required:

Main Features

  • The most compact model in its series
  • Delivers astonishing power for its size and weight
  • Ideal for both potrable and installed applications
  • Fits in a speaker bag (sold seperately)
  • Cabinet material: Plastic
  • Finished in Black
Share:

CBR10 Moulded Plastic 10" 2-Way Passive Speaker 175W

The CBR10 is the most compact model in its series. While delivering astonishing power for its size and weight, the CBR10 is ideal for both portable and installed applications.

The CBR Series is a lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design and acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind. Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovative approach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highly portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.

Product Features

  • Custom-Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
  • HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level
  • Rugged, Highly Portable Enclosure Design
  • Simple Connectivity
  • Versatility for a Variety of Applications
  • High-quality speaker unit, with smooth directional characteristics, and ports reducing wind roar in order
  • to achieve High-resolution sound quality
  • High sound pressure thanks to the unit’s high-input tolerance and exceptional reliability from protection circuitry
  • Highly portable light and compact cabinet
  • Input connectors supporting both speakON and phone plugs
  • Installable with eye bolt rigging and brackets

Product Specifications

General

  • Speaker type:  2-way Speaker, Bass-reflex Type
  • Frequency range (-10dB):  50 Hz - 20 kHz
  • Nominal coverage:  H   90°,      V   60°
  • Components:  LF      10" Cone, 2" Voice Coil (Ferrite Magnet)
  • Components:  HF      1" Voice Coil, Compression Driver (Ferrite Magnet)
  • Crossover:    2.8 kHz
  • Power rating:    NOISE:  175W,    PGM: 350W,   PEAK: 700W
  • Nominal impedance:   8Ω
  • SPL:  Sensitivity (1W; 1m on axis):  94dB SPL      Peak (Calculated): 123 dB SPL
  • I/O connectors:  1/4" Phone x 1, speakON NL4MP x 1
  • Cabinet material:  Plastic
  • Finish:   Black
  • Handle:  Top x 1
  • Flying and mounting hardware:  Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
  • Pole socket:  Φ35 mm  Bottom x 1

Physical & Dimensions

  • Dimensions:  Width 308mm (12.1"),  Height 493mm (19.4"),  Depth 289mm (11.4")
  • Net weight:  9.4 kg (20.7 lbs)
