STAGEPAS 600BT All in one PA System 10ch Mixer and Bluetooth

« return to previous page

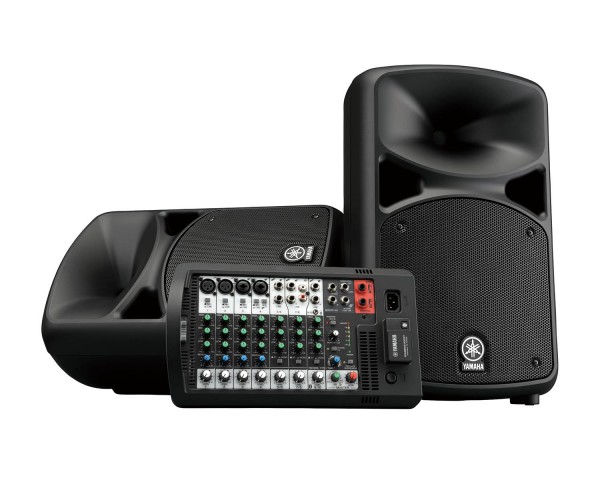

Yamaha STAGEPAS 600BT All in one PA System 10ch Mixer and Bluetooth - Main Image
Yamaha STAGEPAS 600BT All in one PA System 10ch Mixer and Bluetooth - Image 1
Yamaha STAGEPAS 600BT All in one PA System 10ch Mixer and Bluetooth - Image 2
Price:
RRP: £1,401.60 inc VAT
Code:
YAMSP600BT
Manufacturer Code:
STAGEPAS 600 BT
Brand:
Yamaha

Quantity required:

Main Features

  • 680W (340W + 340W) power output
  • High quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)
  • Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
  • Bluetooth® audio streaming
  • 1-Knob Master EQ™ with virtual bass boost
  • High resolution SPX digital reverbs (4 types, parameter control)
Share:

STAGEPAS 600BT All in one PA System 10ch Mixer & Bluetooth

680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, a Bluetooth® input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

Product Features

  • 680W (340W + 340W) power output
  • High quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)
  • Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
  • Bluetooth® audio streaming
  • 1-Knob Master EQ™ with virtual bass boost
  • High resolution SPX digital reverbs (4 types, parameter control)
  • Onboard feedback suppressor
  • Great-sounding 3-band channel EQ
  • Switchable stereo/ mono inputs
  • Hi-Z (high impedance) inputs
  • Phantom power
  • Monitor and Subwoofer outputs
  • Optional reverb footswitch

Product Specifications

System

  • System Type:  Powered mixer with 2 passive speakers
  • Frequency Range (-10dB):  55Hz-20kHz
  • Maximum SPL (Measured Peak IEC Noise@1m):  129dB SPL / speaker
  • Power Consumption:  35W (Idle), 100W (1/8 Power)
  • Power Requirements:  100V-240V 50Hz/60Hz
  • Dimentions (W x H x D):  Speaker 335mm x 545mm x 319mm (13.2" x 21.5" x 12.6"), Mixer 348mm x 197mm x 135mm (13.7" x 7.8" x 5.3")
  • Net weight:  25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)

Powered Mixer

  • Mixer
    • Mixing:  Channels 10
    • Analogue Inputs:  4 mono mic/line + 6 mono / 3 stereo line
    • Bluetooth Input:  Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
      • Channel EQ:  3-band (HIGH Shelving: 8kHz, MID peaking: 2.5kHz, LOW Shelving: 100Hz)
    • Channel Functions:  Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10
    • Digital Effects:  SPX digital reverb (4 program, parameter control)
    • Output Processing:  Feedback suppressor, 1-Knob Master EQ™
    • Phantom:  Power +30V (CH1, 2)
    • Outputs:  SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
    • Control and Others:  Reverb foot switch
  • Built in Amplifiers
    • Power Rating (Dynamic):  680W (340W + 340W)
    • Power Rating (Continuous):  560W (280W + 280W)

Speaker

  • Type:  Two-way bass-relfex speakers
  • Components:  LF: 10" (25cm) cone, HF: 1.4" (3.56cm) voice coil compression driver
  • Coverage Angle:  90° x 60°
  • Floor Monitor Angle:  50°
  • Handle:  1 x Top
  • Pole Socket:  34.8-35.2mm pole socket with StageLok™

What's in the Box?

  • 1x STAGEPAS 600BT All in one PA System
  • 1x Cover panel
  • 1x Power cord (2m)
  • 2x Speaker cables (6m)
  • 12x Non-skid pads
