DHR10 2-Way 10

« return to previous page

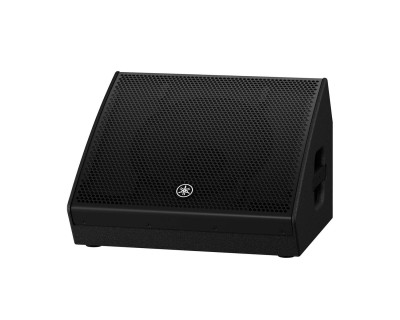

Yamaha DHR10 2-Way 10 Active Loudspeaker Class-D Amp 325W Black - Image 1

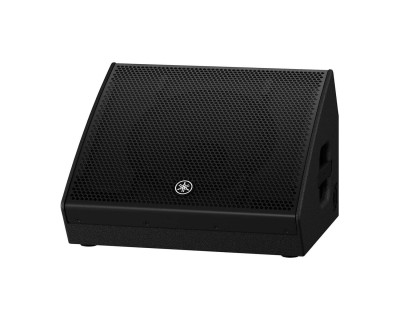

Yamaha DHR10 2-Way 10 Active Loudspeaker Class-D Amp 325W Black - Image 2

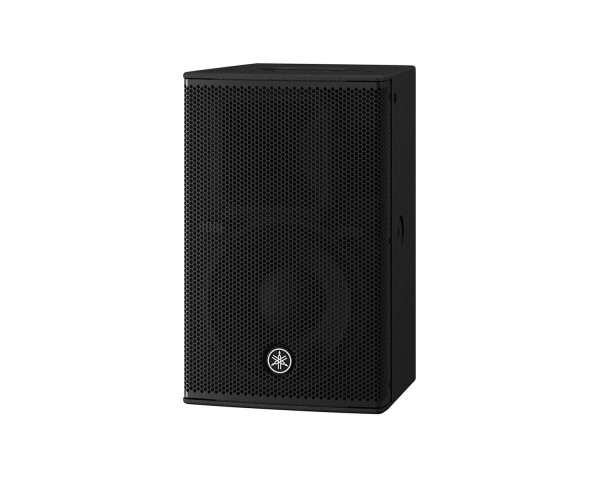

Yamaha DHR10 2-Way 10 Active Loudspeaker Class-D Amp 325W Black - Image 3

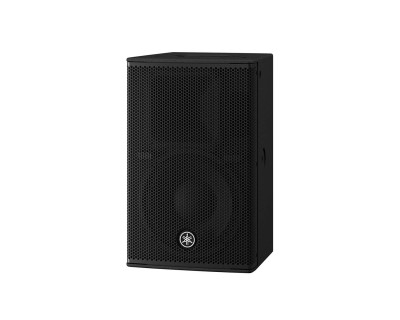

Yamaha DHR10 2-Way 10 Active Loudspeaker Class-D Amp 325W Black - Image 4

Yamaha DHR10 2-Way 10 Active Loudspeaker Class-D Amp 325W Black - Image 5

Price:: RRP: £704.40 inc VAT
Code:: YAMDHR10
Manufacturer Code:: DHR 10
Brand:: Yamaha

Main Features

Featuring a plywood cabinet that delivers a clear sound with minimal vibration
Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
Compact appearance thanks to a 10-inch LF driver that provides excellent low frequency response
Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
A pole socket for use on a stand

DHR10 2-Way 10" Active Loudspeaker Class-D Amp 325W Black

The DHR10 is a 2-way bi-amp powered loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining a 700W amplifier module and high-performance DSP with the same high-grade plywood construction found on Yamaha’s high-end DZR Series, the DHR10 offers best-in-class sound quality and durability.

Product Features

Featuring a plywood cabinet that delivers a clear sound with minimal vibration
Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
Compact appearance thanks to a 10-inch LF driver that provides excellent low frequency response
Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
A pole socket for use on a stand
Rigging points for use with eye bolts
Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Product Specifications

Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB): 52 Hz - 20 kHz
Coverage: H90ﾟ x V60ﾟ (Rotatable)
Crossover: 1.9 kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum Output Level (Measured peak, IEC noise@1m): 128 dB SPL
Components
- LF: Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
- HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
Amplifier Class: Class-D
Power rating
- Dynamic: 700 W (LF: 500 W, HF: 200 W)
- Continuous: 325 W (LF: 260 W, HF: 65 W)
Cooling: Fan cooling, 4 speeds
Power consumption: 60 W (1/8power), 18 W (Idle)
Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
A/D D/A Converters: 24 bit 48 kHz Sampling
Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Cabinet material: Plywood
Finish: Durable Polyurea Painting, Black
Handle: Top x1
Pole Socket: Φ35 mm x1 (Bottom)
Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
Dimensions
- W: 305 mm (12.0")
- H: 494 mm (19.5") (with rubber feet)
- D: 300 mm (11.8")
Net weight: 15.0 kg (33.1 lbs)
