CHR10 2-Way 10" Passive Loudspeaker 175W Black

« return to previous page

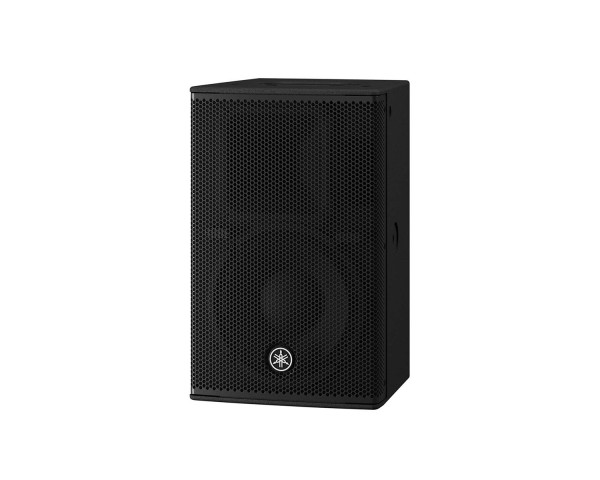

Yamaha CHR10 2-Way 10 Passive Loudspeaker 175W Black - Main Image
Yamaha CHR10 2-Way 10 Passive Loudspeaker 175W Black - Image 1
Yamaha CHR10 2-Way 10 Passive Loudspeaker 175W Black - Image 2
Yamaha CHR10 2-Way 10 Passive Loudspeaker 175W Black - Image 3
Yamaha CHR10 2-Way 10 Passive Loudspeaker 175W Black - Image 4
Yamaha CHR10 2-Way 10 Passive Loudspeaker 175W Black - Image 5
Price:
RRP: £519.60 inc VAT
Code:
YAMCHR10
Manufacturer Code:
CHR 10
Brand:
Yamaha

Quantity required:

Main Features

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact appearance thanks to the 10-inch LF driver that provides excellent low frequency response
  • Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
  • Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
  • A pole socket for use on a stand
Share:

CHR10 2-Way 10" Passive Loudspeaker 175W Black

The CHR10 is a 2-way loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining carefully selected and customized transducers with the same high-grade plywood construction found on Yamaha’s high-end CZR Series, the CHR10 offers best-in-class sound quality and durability.

Product Features

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact appearance thanks to the 10-inch LF driver that provides excellent low frequency response
  • Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
  • Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
  • A pole socket for use on a stand
  • Rigging points for use with eye bolts
  • Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Product Specifications

  • Speaker type:  2-way Speaker, Bass-reflex
  • Frequency range (-10dB):  55 Hz - 20 kHz
  • Coverage:  H90゚ x V60゚ (Rotatable)
  • Crossover:  2.5 kHz
  • Nominal impedance: 8 Ω
  • SPL
    • Sensitivity (1W; 1m on axis):  93 dB SPL
    • Peak (Calculated):  122 dB SPL
  • Components
    • LF:  Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
    • HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
  • Power rating
    • NOISE:  175W
    • PGM:  350W
    • PEAK:  700W
  • I/O connectors:  SpeakON NL4MP x 2 (Parallel)
  • Cabinet material:  Plywood
  • Finish:  Durable Polyurea Painting, Black
  • Handle:  Top x1
  • Pole Socket:  Φ35 mm x1 (Bottom)
  • Rigging:  Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
  • Dimensions
    • W:  305 mm (12.0")
    • H:  494 mm (19.5") (with rubber feet)
    • D:  300 mm (11.8")
  • Net weight:  13.7 kg (30.2 lbs)

What's in the Box?

  • CHR10 Loudspeaker
  • Owner’s manual
