DHR12M 2-Way 12

« return to previous page

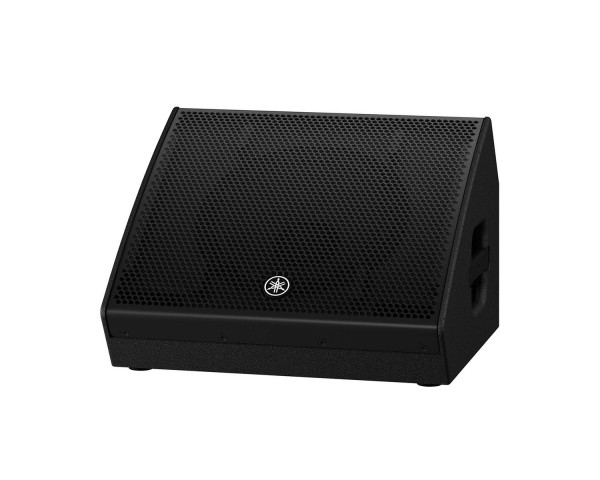

Yamaha DHR12M 2-Way 12 Active Loudspeaker Class-D Amp 465W Black - Image 1

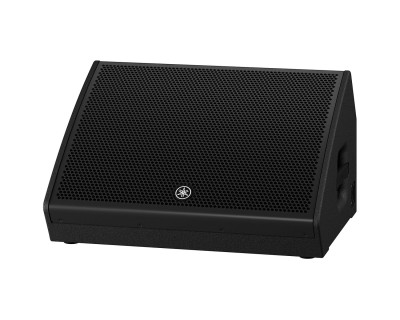

Yamaha DHR12M 2-Way 12 Active Loudspeaker Class-D Amp 465W Black - Image 2

Yamaha DHR12M 2-Way 12 Active Loudspeaker Class-D Amp 465W Black - Image 3

Yamaha DHR12M 2-Way 12 Active Loudspeaker Class-D Amp 465W Black - Image 4

Yamaha DHR12M 2-Way 12 Active Loudspeaker Class-D Amp 465W Black - Image 5

Yamaha DHR12M 2-Way 12 Active Loudspeaker Class-D Amp 465W Black - Image 6

Price:: RRP: £844.80 inc VAT
Code:: YAMDHR12M
Manufacturer Code:: DHR 12M
Brand:: Yamaha

Main Features

The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
Featuring a plywood cabinet that delivers a clear sound with minimal vibration
Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
A pole socket for use on a stand
Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Finish: Black

DHR12M 2-Way 12" Active Loudspeaker Class-D Amp 465W Black

The DHR12M is a 2-way bi-amp powered loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR12M offers best-in-class sound quality and durability.

Product Features

The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
Featuring a plywood cabinet that delivers a clear sound with minimal vibration
Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
A pole socket for use on a stand
Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Product Specifications

Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB): 55 Hz - 20 kHz
Coverage: H90ﾟ x V60ﾟ
Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum Output Level (Measured peak, IEC noise@1m): 129 dB SPL
Components
- LF: Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
- HF: Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
Amplifier Class: Class-D
Power rating
- Dynamic: 1,000 W (LF: 800 W, HF: 200 W)
- Continuous: 465 W (LF: 400 W, HF: 65 W)
Cooling: Fan cooling, 4 speeds
Power consumption: 74 W (1/8power), 18 W (Idle)
Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
A/D D/A Converters: 24 bit 48 kHz Sampling
Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Cabinet material: Plywood
Finish: Durable Polyurea Painting, Black
Handle: Side x1
Pole Socket: Φ35 mm x1 (Bottom)
Floor Monitor Angle: 57°
Dimensions
- W: 500 mm (19.7")
- H: 343 mm (13.5") (with rubber feet)
- D: 454 mm (17.9")
Net weight: 16.5 kg (36.4 lbs)
