CBR15 Moulded Plastic 15" 2-Way Passive Speaker 250W

« return to previous page
Yamaha CBR15 Moulded Plastic 15 2-Way Passive Speaker 250W - Main Image
Yamaha CBR15 Moulded Plastic 15 2-Way Passive Speaker 250W - Image 1
Yamaha CBR15 Moulded Plastic 15 2-Way Passive Speaker 250W - Image 2
Yamaha CBR15 Moulded Plastic 15 2-Way Passive Speaker 250W - Image 3
Yamaha CBR15 Moulded Plastic 15 2-Way Passive Speaker 250W - Image 4
Yamaha CBR15 Moulded Plastic 15 2-Way Passive Speaker 250W - Image 5
Yamaha CBR15 Moulded Plastic 15 2-Way Passive Speaker 250W - Image 6
Price:
RRP: £602.40 inc VAT
Code:
YAMCBR15
Manufacturer Code:
CBR 15
Brand:
Yamaha

Quantity required:

Main Features

  • Provides the lowest frequency in its lineup
  • Delivers outstanding performance for the front-of-house sound for live performance
  • Also ideal for DJ events or installations
  • Ideal for scenarios that require highly prominent low and high SPL
  • Fits in its on speaker bag (sold seperately)
  • Finished in Black
Share:

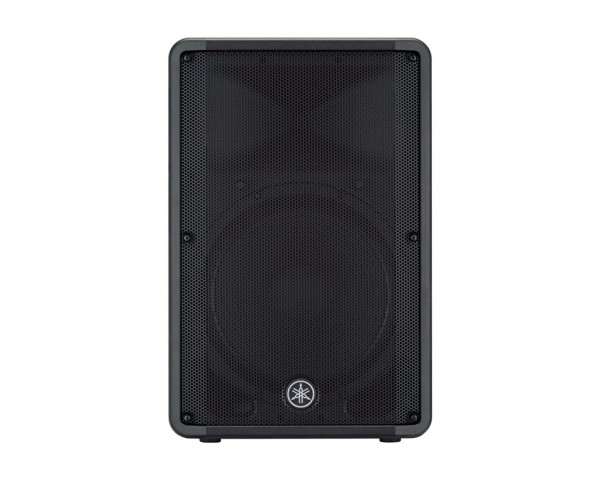

CBR15 Moulded Plastic 15" 2-Way Passive Speaker 250W

The CBR15 provides the lowest frequency in its lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.

The CBR Series is a lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design and acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind. Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovative approach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highly portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.

Product Features

  • Custom-Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
  • HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level
  • Rugged, Highly Portable Enclosure Design
  • Simple Connectivity
  • Versatility for a Variety of Applications
  • High-quality speaker unit, with smooth directional characteristics, and ports reducing wind roar in order
  • to achieve High-resolution sound quality
  • High sound pressure thanks to the unit’s high-input tolerance and exceptional reliability from protection circuitry
  • Highly portable light and compact cabinet
  • Input connectors supporting both speakON and phone plugs
  • Installable with eye bolt rigging and brackets

Product Specifications

General

  • Speaker type:  2-way Speaker, Bass-reflex Type
  • Frequency range (-10dB):  46 Hz - 20 kHz
  • Nominal coverage:  H   90°,      V   60°
  • Components:  LF      15" Cone, 2.5" Voice Coil (Ferrite Magnet)
  • Components:  HF      1.4" Voice Coil, Compression Driver (Ferrite Magnet)
  • Crossover:    2.0 kHz
  • Power rating:    NOISE:  250W,    PGM: 500W,   PEAK: 1000W
  • Nominal impedance:   8Ω
  • SPL:  Sensitivity (1W; 1m on axis):  96dB SPL      Peak (Calculated): 126 dB SPL
  • I/O connectors:  1/4" Phone x 1, speakON NL4MP x 1
  • Cabinet material:  Plastic
  • Finish:   Black
  • Handle:  Side x 2
  • Flying and mounting hardware:  Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
  • Pole socket:  Φ35 mm  Bottom x 1

Physical & Dimensions

  • Dimensions:  Width 455mm (17.9"),  Height 700mm (27.6"),  Depth 378mm (14.9")
  • Net weight:  17.7 kg (39.0 lbs)
