D921F 2Ch XLR Phantom Input Module for D901 Mixer

« return to previous page

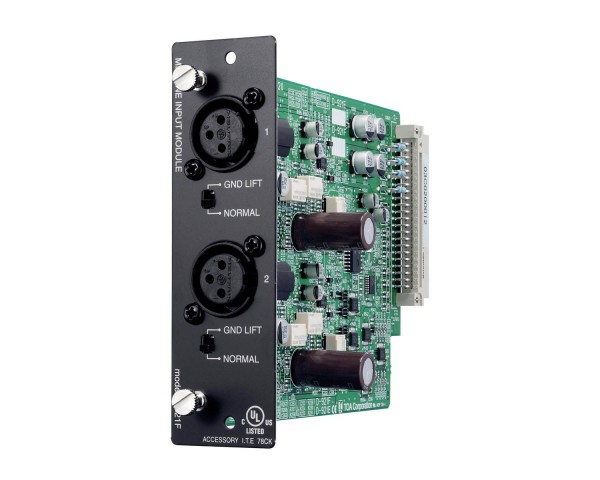

TOA D921F 2Ch XLR Phantom Input Module for D901 Mixer - Main Image
Price:
RRP: £214.80 inc VAT
Code:
TOAD921F
Manufacturer Code:
D-921F
Brand:
TOA

Quantity required:

Main Features

  • 2-channel microphone/line input module
  • Equipped with XLR connectors
  • Frequency response:  20 Hz - 20 kHz (±1 dB (+4 dB Input)
  • Distortion:  < 0.05 % (+4 dBV input)
  • A/D, D/A Converter:  24 bit
  • Sampling frequency:  48 kHz
Share:

D921F 2Ch XLR Phantom Input Module for D901 Mixer

The D-921F is a 2-channel microphone/line input module designed for use with the D-901 Digital Mixer, etc. It is equipped with XLR connectors. Input sensitivity and phantom power setting can be performed at the main frame such as the D-901.

Product Features

  • 2-channel microphone/line input module
  • Equipped with XLR connectors

Product Specifications

  • Frequency response:  20 Hz - 20 kHz (±1 dB (+4 dB Input)
  • Distortion:  < 0.05 % (+4 dBV input)
  • Inputs:  2 channels, Mic/Line changeable ; Mic: -50/-36 dBu, 4.7kOhm, Line: -10/+4 dBu, 10kOhm, electronically-balanced ; Connectors: XLR-3-31, Phantom power supply (12-15V DC), Ground lift switch
  • A/D, D/A Converter:  24 bit
  • Sampling frequency:  48 kHz
  • Dimensions (W x H x D):  35 x 119,5 x 178,4 mm
  • Dimensions (ø x D):  x 178,4 mm
  • Finish:  Steel plate, pre-coated, 30% gloss, black
