D936R 4Ch RCA 24bit Stereo i/p Module for D901 Mixer

« return to previous page

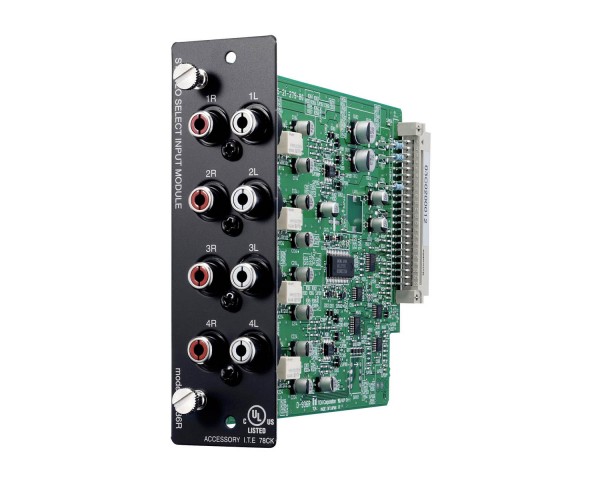

TOA D936R 4Ch RCA 24bit Stereo i/p Module for D901 Mixer - Main Image
Price:
RRP: £202.80 inc VAT
Code:
TOAD936R
Manufacturer Code:
D-936R
Brand:
TOA

Quantity required:

Main Features

  • 4 stereo channel input module
  • Equipped with standard RCA pin jacks
  • Frequency response:  20 Hz - 20 kHz (±1 dB (+4 dB Input)
  • Distortion:  < 0.05 %
  • Inputs:  4 stereo inputs (selection of 1 stereo or mixing or all 4 stereo inputs), -10 dBV, 10 kOhm, RCA pin jack
  • Sampling frequency:  48 kHz
Share:

D936R 4Ch RCA 24bit Stereo i/p Module for D901 Mixer

The D-936R is a 4 stereo input module designed for use with the D-901 Digital Mixer, etc. It is equipped with standard RCA pin jacks. The D-936R features two stereo transmission modes: 1)Selection of one of the four stereo inputs for transmission to the D-901. 2)Mixing of all four stereo inputs, transmitting the mixed signal to the D-901 through left/right channel outputs. Mode settings and stereo selection are performed at the main frame such as the D-901.

Product Features

  • 4 stereo channel input module
  • Equipped with standard RCA pin jacks

Product Specifications

  • Frequency response:  20 Hz - 20 kHz (±1 dB (+4 dB Input)
  • Distortion:  < 0.05 %
  • Inputs:  4 stereo inputs (selection of 1 stereo or mixing or all 4 stereo inputs), -10 dBV, 10 kOhm, RCA pin jack
  • Sampling frequency:  48 kHz
  • Dimensions (W x H x D):  35 x 119,5 x 178,4 mm
  • Dimensions (ø x D):  x 178,4 mm
  • Finish:  Steel plate, pre-coated, 30% gloss, black

Product Downloads
