WELLFit DMX LED Uplighter 6x in Charging Flightcase Chrome IP65

Product Features

• A completely wireless IP65 rated battery powered up-light with four high powered quad colored RGBA LEDs that is controlled by W-DMX or IR remote.
• Chrome exterior for blending into its surroundings.

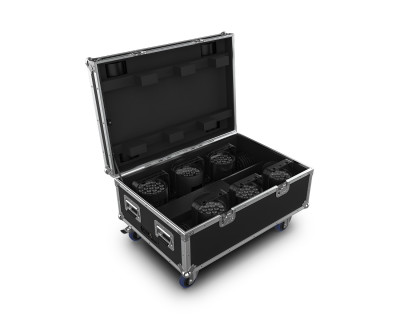

• Ships with 6 slot drop in charging case for easy storage and re-charging of the battery.
• 8 hours of operation at full and a quick 5 hours charging time for frequent use.
• Built in automated programs recallable by IR, WDMX or manually.
• M12 threaded insert for easy clamp installation and a Kensington lock position for securing your investment.

Product Specifications

Optical

• Light Source:  4 LEDs (quad- colour RGBA) 10 W, (720 mA), 50,000 hours life expectancy)
• Beam Angle:  11°
• Field Angle:  18°
• Illuminance (18°):  800 lux @ 5 m
• PWM Frequency:  1200 Hz

Dynamic Effects

• Colour Macros:  5 macros
• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Strobe Rate:  0 to 24 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Pre-sets:  Yes
• Dim Modes:  4
• Built-in Automated Programs:  Yes

Physical & Dimensions

• Dimensions:  138 x 145 x 202 mm
• Dimensions (charging case):  519 x 470 x 540 mm
• Weight (single unit):  3.4 kg
• Weight (charging case):  47 kg
• Exterior Colour:  Chrome
• Housing Material:  Aluminium die-cast

Connections

• Power Connection:  Edison (Local) plug to Neutrik® powerCON
• Power Input:  Neutrik® powerCON®
• Cable Length (power):  1.5 m

Control

• Control Protocol:  W-DMX™, IRCDMX Channels:  3, 4, 6 or 10
• Modes/Personalities:  5 personalities (4Ch, 6Ch, 10Ch, HSV, HSI)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current (single unit charging):  48 W, 0.44 A @ 120 V, 60 Hz
• Power and Current (charging case):  288 W, 2.44 A @ 120 V, 60 Hz
• Power and Current (single unit charging):  48 W, 0.25 A @ 208 V, 60 Hz
• Power and Current (charging case):  288 W, 1.5 A @ 208 V, 60 Hz
• Power and Current (single unit charging):  48 W, 0.23 A @ 230 V, 50 Hz
• Power and Current (charging case):  288 W, 1.38 A @ 230 V, 50 Hz

Battery

• Battery type:  Lithium Ion
• Rechargeable:  Yes
• Battery Charge Time:  5 hours
• Battery Life:  (all on) 8 hours, (single LED) 20 hours
• Battery Power:  14.8 V, 11 Ah

Certifications / Qualifications

• CEIP Rating:  IP65, temporary outdoor/wet use

What’s in the Box?

• WELL Fit X6
• WELL Fit Charging case
• IR remote
• PowerCON power cable with Edison plug
• QRG
• Warranty card
