GigBAR Move + ILS 5in1 Lighting Bar | Effects Lighting

« return to previous page

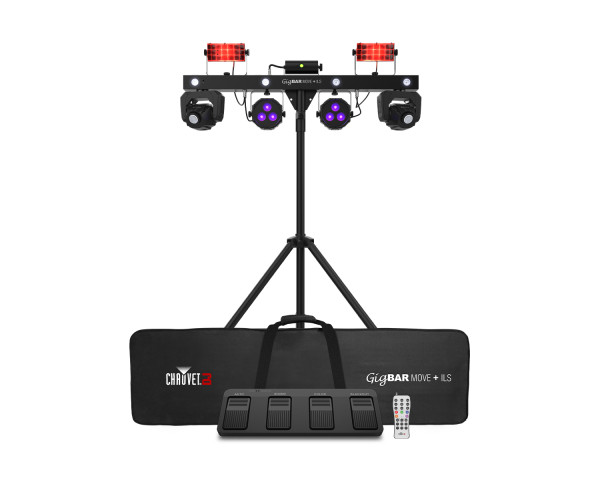

CHAUVET DJ GigBAR Move + ILS 5in1 Lighting Bar Mover/Derby/Wash/Laser/Strobe - Main Image

CHAUVET DJ GigBAR Move + ILS 5in1 Lighting Bar Mover/Derby/Wash/Laser/Strobe - Image 1

CHAUVET DJ GigBAR Move + ILS 5in1 Lighting Bar Mover/Derby/Wash/Laser/Strobe - Image 2

CHAUVET DJ GigBAR Move + ILS 5in1 Lighting Bar Mover/Derby/Wash/Laser/Strobe - Image 3

CHAUVET DJ GigBAR Move + ILS 5in1 Lighting Bar Mover/Derby/Wash/Laser/Strobe - Image 4

CHAUVET DJ GigBAR Move + ILS 5in1 Lighting Bar Mover/Derby/Wash/Laser/Strobe - Image 5

CHAUVET DJ GigBAR Move + ILS 5in1 Lighting Bar Mover/Derby/Wash/Laser/Strobe - Image 6

Price:: RRP: £1,344.00 inc VAT
Code:: CHAGBMPILS
Manufacturer Code:: GIGBARMOVEPLUSILS
Brand:: CHAUVET DJ

Main Features

5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
Separate colour and gobo wheels allow for creative programming
Totem Mode keeps the moving heads focused on the dance floor
System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
Built-in UV LEDs illuminate fluorescent objects for dazzling blacklight effects

GIGBAR MOVE PLUS ILS Lighting Bar Mover/Derby/Wash/Laser/Strobe

The future of easy lighting synchronization is here with GigBAR Move + ILS. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.

Product Features

5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
Separate colour and gobo wheels allow for creative programming
Totem Mode keeps the moving heads focused on the dance floor
System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
Built-in UV LEDs illuminate fluorescent objects for dazzling blacklight effects
Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Product Specifications

General

DMX Channels: 3, 28, or 50
Colours (moving head): 9 + open, split colours, continuous scroll
Gobos (moving head): 9 + open, continuous scroll
Light Source (pars): 3 LEDs (hex colour RGBAW+UV) 6 W (2 A)
Light Source (strobe): 4 LEDs (cool white) 5 W (1.2 A)
Light Source (derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A)
Light Source: (moving head) 1 LED (cool white) 32 W, (3 A)
Light Source: (Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/100 mW (blue) laser diode
Strobe Rate: 0 to 30 Hz
Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
Beam Angle (moving head): 17°
Beam Angle (pars): 22°
Beam Angle (strobe): 30°
Coverage Angle (derby): 131°
Coverage Angle (laser): 93°
Illuminance (pars): 1,205 lux @ 2 m (per par)
Illuminance (moving head): 5,140 lux @ 2 m (per head)
Illuminance (strobe): 130 lux @ 2 m
Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 250 W, 3 A @ 120 V, 60 Hz
Optional Controllers: RF
Classified per 21 CFR 1040.10 & .11
Complies with US FDA CDRH laser safety standards 21 CFR 1040.10 & 1040.11
Approvals: CE, UKCA, RoHS, FCC, FDA
