LED Shadow 2 ILS Ultraviolet LED Backlight 18x3W UV LEDs

« return to previous page

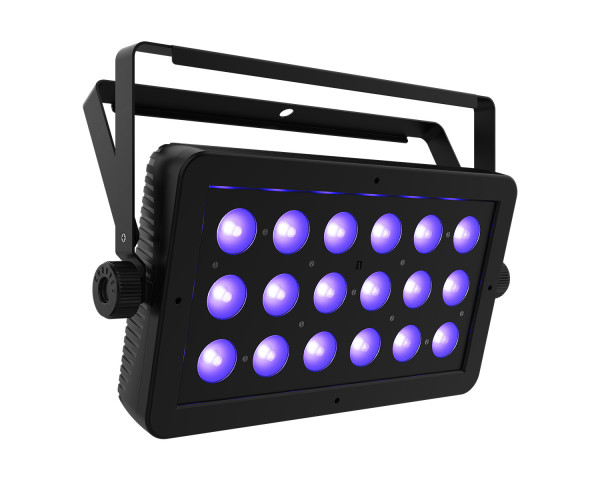

CHAUVET DJ LED Shadow 2 ILS Ultraviolet LED Backlight 18x3W UV LEDs - Main Image
CHAUVET DJ LED Shadow 2 ILS Ultraviolet LED Backlight 18x3W UV LEDs - Image 1
CHAUVET DJ LED Shadow 2 ILS Ultraviolet LED Backlight 18x3W UV LEDs - Image 2
CHAUVET DJ LED Shadow 2 ILS Ultraviolet LED Backlight 18x3W UV LEDs - Image 3
CHAUVET DJ LED Shadow 2 ILS Ultraviolet LED Backlight 18x3W UV LEDs - Image 4
CHAUVET DJ LED Shadow 2 ILS Ultraviolet LED Backlight 18x3W UV LEDs - Image 5
Price:
RRP: £216.00 inc VAT
Code:
CHASHADOW2ILS
Manufacturer Code:
LEDSHADOW2ILS
Brand:
CHAUVET DJ

Quantity required:

Main Features

  • Versatile black light with brilliant eye candy effects
  • ILS compatibility for use in the ILS ecosystem
  • D-Fi USB compatibility for wireless Master/Slave, or DMX control
  • Generate complex looks easily with built-in, eye-catching auto programs with sectional control
  • Access built-in automated programs via IRC6 remote, Master/Slave, or DMX
  • Achieve smooth LED fading with built-in dimming curves
Share:

LED Shadow 2 ILS Ultraviolet LED Backlight 18x3W UV LEDs

Amazing black light effects step out of the shadows with LED Shadow 2 ILS, a versatile black light with brilliant eye candy effects and compatibility with ILS which makes creating coordinated light shows across different fixture types easy. D-Fi USB compatibility is also on board for wireless Master/Slave, or DMX control. LED Shadow 2 ILS lets you generate complex looks easily with built-in, eye-catching auto programs with sectional control and access built-in automated programs via IRC6 remote, Master/Slave, or DMX. LED Shadow 2 ILS is Ideal for sound-sensitive environments due to the radiant cooling design. Achieve smooth LED fading with built-in dimming curves.

Product Features

  • Versatile black light with brilliant eye candy effects
  • ILS compatibility for use in the ILS ecosystem
  • D-Fi USB compatibility for wireless Master/Slave, or DMX control
  • Generate complex looks easily with built-in, eye-catching auto programs with sectional control
  • Access built-in automated programs via IRC6 remote, Master/Slave, or DMX
  • Achieve smooth LED fading with built-in dimming curves
  • Ideal for sound-sensitive environments due to the radiant cooling design
  • Save time running extension cords by power linking multiple units

Product Specifications

General

  • DMX Channels:  4
  • DMX Connectors:  3-pin XLR
  • Light Source:  18 LEDs (UV) 3 W, (0.6 A), 50,000 hours life expectancy
  • Strobe Rate:  0 to 20 Hz
  • Wavelength:  405 nm
  • PWM Frequency:  1.24 KHz
  • Coverage angle:  32°
  • Power Linking:  11 units @ 120 V; 20 units @ 230 V
  • Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:  49 W, 0.7 A @ 120 V, 60 Hz
  • Power and Current:  49 W, 0.4 A @ 230 V, 50 Hz
  • Bracket Mounting Hole:  13 mm
  • Optional Controllers:  IRC6
  • Approvals:  CE, RoHS, UKCA

Physical & Dimensions

  • Weight:  6 lb (2.8 kg)
  • Size:  8.2 x 14 x 2.2 in (208 x 355 x 55 mm)

What's in the Box?

  • Power cord
  • Hanging Bracket with Mounting Hardware
  • Warranty Card

Product Downloads

Product Video
