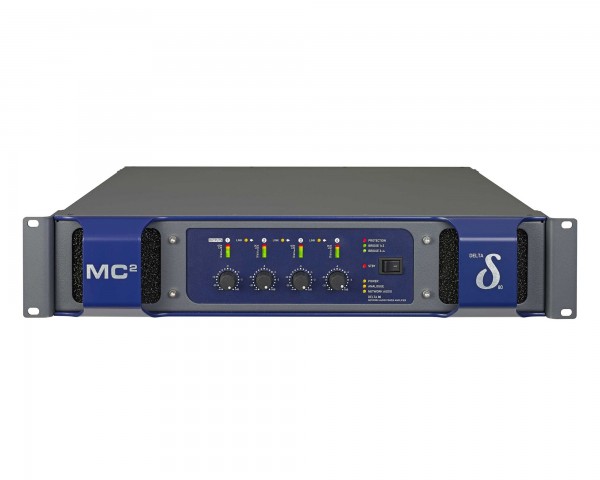

Delta 80 Power Amp NO-DSP 4x2000W @ 4Ω

MC2 Audio Delta 80 Power Amp NO-DSP 4x2000W @ 4Ω - Main Image

MC2 Audio Delta 80 Power Amp NO-DSP 4x2000W @ 4Ω - Image 1

MC2 Audio Delta 80 Power Amp NO-DSP 4x2000W @ 4Ω - Image 2

Price:: RRP: £4,110.76 inc VAT
Code:: MC2D80ND
Manufacturer Code:: D80-ND
Brand:: MC2 Audio

Main Features

Delta Power Amplifier (Non-DSP Version)
4 Channels
4x2000W @ 4ohms
Run bridged channel pairs or link adjacent inputs for total flexibility in either analogue or digital mode.
Connect to a Delta DSP amplifier using a single CAT5 cable to realise a stereo 4 way system with no further external processing required
All MC² Audio products are covered by a 5 year warranty.

Delta 80 Power Amplifier NO-DSP 4x2000W @ 4ohms

Delta Series offers the assurance of MC2’s highest quality audio power amp technology with future proofing via the inclusion of simple to use digital audio networking.

A rear panel switch allows the amplifier to accept either four channels of analogue audio or pick up four channels of networked audio, via Dante (Dante Model), which is then converted using 24 bit 96kHz DACs.

Connect to a Delta DSP amplifier using a single CAT5 cable to realise a stereo 4 way system with no further external processing required. Switch back to analogue to use as a powerful traditional quad channel amplifier.

Run bridged channel pairs or link adjacent inputs for total flexibility in either analogue or digital mode.

All MC² Audio products are covered by a 5 year warranty.

Product Features

Delta Power Amplifier (Non-DSP Version)
4 Channels
4x2000W @ 4ohms
Run bridged channel pairs or link adjacent inputs for total flexibility in either analogue or digital mode.
Connect to a Delta DSP amplifier using a single CAT5 cable to realise a stereo 4 way system with no further external processing required
All MC² Audio products are covered by a 5 year warranty.

Product Specifications

General

Number of channels: 4
Output Power: (per channel)
- 8 ohms: 1000W
- 4 ohms: 2000W
- 2.7 ohms: 2200W
- 2 ohms: 2000W
Output Power: (bridged)
- 8 ohms: 4000W
- 4 ohms: 4000W
THD%: (@1dB below max output)
- @ 1kHz: < 0.08%
- 20Hz to 20kHz: < 0.1%
Gain / Sensitivity:
- Gain: 26/32dB
- Sensitivity (for max power): 8.8dBu
- Frequency Response: 20Hz to 20kHz
  - (+ 0/- 0.5dB)
Power Consumption: (< 50W in standby)
- Nominal @ 240v into 4 ohms: 5.0A
- Nominal @ 120v into 4 ohms: 10.4A

Physical

Dimensions: (2U) (mm)
- Amplifier: 88(h) x 482(w) x 428(d)
- Single Box (UK shipping): 230 x 580 x 560
- Double Box (outside UK): 250 x 610 x 600
Weight:
- Amplifier: 10.1kg
- Boxed (shipping weight): 11.6kg
