Delta 80 Power Amp NO-DSP with Dante 4x2000W @ 4Ω

« return to previous page

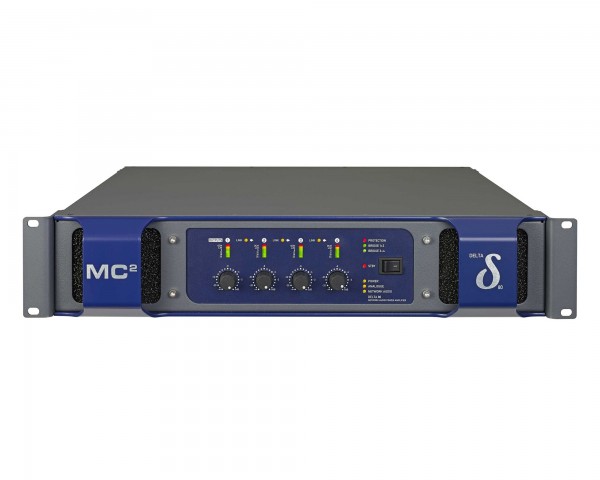

MC2 Audio Delta 80 Power Amp NO-DSP with Dante 4x2000W @ 4Ω - Main Image

MC2 Audio Delta 80 Power Amp NO-DSP with Dante 4x2000W @ 4Ω - Image 1

MC2 Audio Delta 80 Power Amp NO-DSP with Dante 4x2000W @ 4Ω - Image 2

Price:: RRP: £4,695.76 inc VAT
Code:: MC2D80NDD
Manufacturer Code:: D80-ND-Dante
Brand:: MC2 Audio

Main Features

Delta Power Amplifier with Dante (Non-DSP Version)
4 Channels
4x2000W @ 4ohms
Run bridged channel pairs or link adjacent inputs for total flexibility in either analogue or digital mode.
Connect to a Delta DSP amplifier using a single CAT5 cable to realise a stereo 4 way system with no further external processing required
All MC² Audio products are covered by a 5 year warranty.

Full Description

Delta 80 Power Amplifier NO-DSP with Dante 4x2000W @ 4ohms

Delta Series offers the assurance of MC2’s highest quality audio power amp technology with future proofing via the inclusion of simple to use digital audio networking.

A rear panel switch allows the amplifier to accept either four channels of analogue audio (Non-Dante Model) or pick up four channels of networked audio, via Dante, which is then converted using 24 bit 96kHz DACs.

Connect to a Delta DSP amplifier using a single CAT5 cable to realise a stereo 4 way system with no further external processing required. Switch back to analogue to use as a powerful traditional quad channel amplifier.

Run bridged channel pairs or link adjacent inputs for total flexibility in either analogue or digital mode.

All MC² Audio products are covered by a 5 year warranty.

Features

Product Features

Delta Power Amplifier with Dante (Non-DSP Version)
4 Channels
4x2000W @ 4ohms
Run bridged channel pairs or link adjacent inputs for total flexibility in either analogue or digital mode.
Connect to a Delta DSP amplifier using a single CAT5 cable to realise a stereo 4 way system with no further external processing required
All MC² Audio products are covered by a 5 year warranty.

Technical Specs

Product Specifications

General

Number of channels: 4
Output Power: (per channel)
- 8 ohms: 1000W
- 4 ohms: 2000W
- 2.7 ohms: 2200W
- 2 ohms: 2000W
Output Power: (bridged)
- 8 ohms: 4000W
- 4 ohms: 4000W
THD%: (@1dB below max output)
- @ 1kHz: < 0.08%
- 20Hz to 20kHz: < 0.1%
Gain / Sensitivity:
- Gain: 26/32dB
- Sensitivity (for max power): 8.8dBu
- Frequency Response: 20Hz to 20kHz
  - (+ 0/- 0.5dB)
Power Consumption: (< 50W in standby)
- Nominal @ 240v into 4 ohms: 5.0A
- Nominal @ 120v into 4 ohms: 10.4A

Physical

Dimensions: (2U) (mm)
- Amplifier: 88(h) x 482(w) x 428(d)
- Single Box (UK shipping): 230 x 580 x 560
- Double Box (outside UK): 250 x 610 x 600
Weight:
- Amplifier: 10.1kg
- Boxed (shipping weight): 11.6kg
