DS1339W 5.25" Sound Masking Plenum Loudspeaker 70V White

« return to previous page

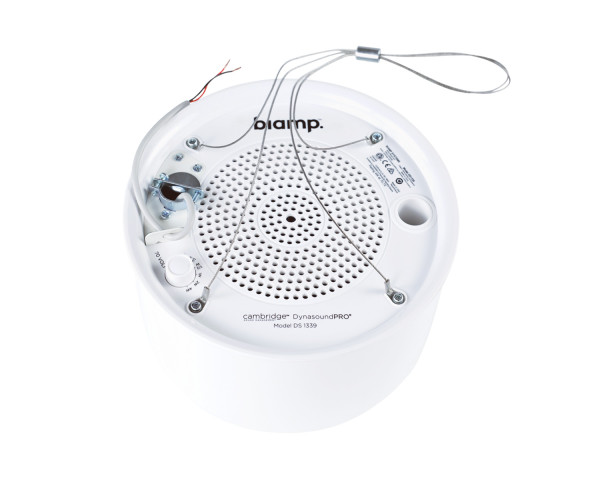

Biamp DS1339W 5.25 Sound Masking Plenum Loudspeaker 70V White - Main Image
Price:
RRP: £117.60 inc VAT
Code:
BIADS1339W
Manufacturer Code:
911.0709.900
Brand:
Biamp

Quantity required:

Main Features

  • Clean, streamlined appearance for use in open structure facilities and in ceiling plenums
  • Internal 70.7 volt transformer with rotary volume control
  • Four-point suspension for easy installation and fast leveling
  • ETL listed to conform to UL 1480A and UL 2043
  • 5.25-inch diameter speaker
  • Convoluted, flame retardant, acoustical insert to eliminate standing waves and metallic resonance
Share:

DS1339W 5.25" Sound Masking Plenum Loudspeaker 70V White

The DS1339 contains a 5.25-inch diameter speaker mounted on axis. The compact enclosure includes a convoluted, flame retardant, acoustical insert to eliminate standing waves and metallic resonance. Dynasound’s DS1339 sound masking speaker is designed for quick and easy installation into open structure architecture and above suspended ceilings. When suspended, the loudspeaker assembly offers a clean appearance with no exposed controls or wiring from below. The DS1339 provides uniform dispersion and is well suited for sound masking, paging, and music signals.

Product Features

  • Clean, streamlined appearance for use in open structure facilities and in ceiling plenums
  • Internal 70.7 volt transformer with rotary volume control
  • Four-point suspension for easy installation and fast leveling
  • ETL listed to conform to UL 1480A and UL 2043
  • 5.25-inch diameter speaker
  • Convoluted, flame retardant, acoustical insert to eliminate standing waves and metallic resonance

Product Specifications

  • Loudspeaker Type:  5.25” full range paper cone driver with one-inch voice coil diameter, 70.7 Volt
  • Power Handling:  4 Watts @ 70.7 V
  • Nominal Impedance:  70.7 V / Secondary Equals 8 Ohms
  • Nominal Dispersion:  160° H x 165° V
  • Enclosure material:  Cold rolled steel plate, thickness:  1 mm, powder coated
  • Enclosure:  Ported
  • Sensitivity (2.83 Volts @ 1 meter on Axis):  91.9
  • Frequency Response/-10dB down:  125Hz to 10,000Hz
  • Transformer Taps:  1/8,1/4, 1/2,1,2,4 watts
  • Connections:  2- Wire Pigtail
  • Height:  4.5” (11.4 cm)
  • Diameter:  8.5” (21.6 cm)
  • Weight:  4.4 lbs. (2 kg)
  • Shipping Weight (pounds):  23.6 lbs. (4-pack)
  • Shipping Dimensions:  22” x 22” x 7” (4-pack)
  • Certifications:  UL 1480A and UL 2043
  • Cabling:  2 conductor 20AWG
  • Driver Diameter:  5.25”
  • Colour:  White or black
  • SKU:  DS1339
