DS1398 2x4" Horizontally Opposed Driver Masking Speaker w/Clip

« return to previous page

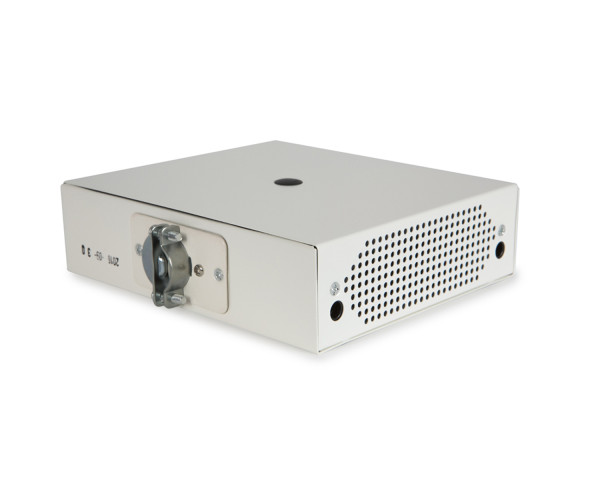

Biamp DS1398 2x4 Horizontally Opposed Driver Masking Speaker w/Clip - Main Image
Price:
RRP: £117.60 inc VAT
Code:
BIADS1398
Manufacturer Code:
911.0841.900
Brand:
Biamp

Quantity required:

Main Features

  • For use in floor cavities as shallow as 1.75”
  • Performance-engineered dual drivers with tuned ports well suited for sound masking
  • ETL listed to conform to UL 1480 and CSA C22.2 62368-1
  • Dual horizontally opposed high performance drivers
  • 80.7dB SPL
  • Front Vented Cooling
Share:

DS1398 2x4" Horizontally Opposed Driver Masking Speaker w/Clip

The DS1398 contains dual, horizontally opposed speakers which produce uniform sound dispersion ideally suited for reverberant under floor cavities or shallow ceiling plenums.

Product Features

  • For use in floor cavities as shallow as 1.75”
  • Performance-engineered dual drivers with tuned ports well suited for sound masking
  • ETL listed to conform to UL 1480 and CSA C22.2 62368-1
  • Dual horizontally opposed high performance drivers
  • 80.7dB SPL
  • Front Vented Cooling

Product Specifications

  • Loudspeaker Type:  Dual horizontally opposed high performance drivers
  • Drivers
    • Diameter:  4 inches × 1.5 inches (102 mm × 38 mm)
    • Quantity:  2
  • Nominal Impedance:  4Ω
  • Nominal Dispersion
    • Horizontal:  160°
    • Vertical:  325°
  • Frequency Range (-10dB):  160Hz — 6.3kHz
  • Output Power Rating:  10W continuous
  • Sensitivity (2.83V @ 1m):  80.7dB SPL
  • Cooling:  Front vented
  • Enclosure Material:  1mm cold rolled steel, powder coated
  • Connections:  2-wire pigtail
  • Cabling:  2-conductor 18AWG to 16AWG, plenum rated
  • Compliance:
    • ETL Listed (USA)
    • CSA Listed (Canada)
  • Product Dimensions
    • Height:  1.8 inches (46 mm)
    • Width:  6.25 inches (159 mm)
    • Depth:  5.25 inches (133 mm)
    • Weight:  1.75 lbs. (0.8 kg)
