DXR 8 MKII 8" 2-Way Class D Active Speaker 1100W

« return to previous page

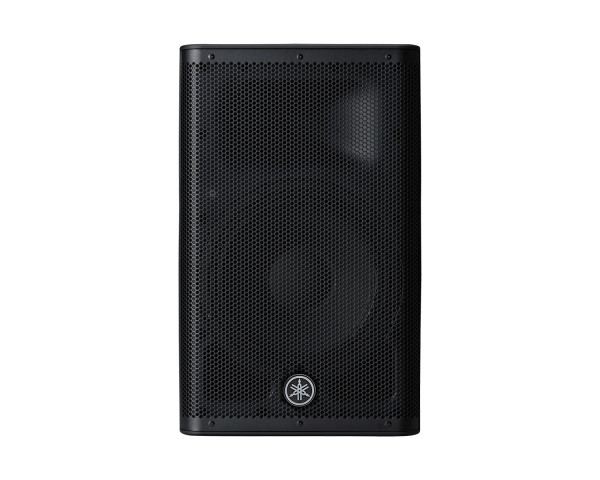

Yamaha DXR 8 MKII 8 2-Way Class D Active Speaker 1100W - Main Image
Yamaha DXR 8 MKII 8 2-Way Class D Active Speaker 1100W - Image 1
Yamaha DXR 8 MKII 8 2-Way Class D Active Speaker 1100W - Image 2
Yamaha DXR 8 MKII 8 2-Way Class D Active Speaker 1100W - Image 3
Yamaha DXR 8 MKII 8 2-Way Class D Active Speaker 1100W - Image 4
Price:
RRP: £783.60 inc VAT
Code:
YAMDXR8MKII
Manufacturer Code:
DXR 8 MKII
Brand:
Yamaha

Quantity required:

Main Features

  • 1.75” Neodymium precision HF compression drivers
  • 1100W of power
  • Equiped with rigging points
  • non-resonant ABS enclosures
  • Flexible LPF settings
  • Max. 130dB SPL



Share:

DXR 8 MKII 8" 2-Way Class D Active Speaker 1100W

The most compact of the DXR mkII Series speakers, the DXR8mkII makes the most of its 1100W of power, delivering extremely high output while maintaining outstanding resolution. Adding a DXS12mkII subwoofer gives you an ultra-compact high-power SR system.

Product Features

  • 1.75” Neodymium precision HF compression drivers
  • 1100W of power
  • Equiped with rigging points
  • non-resonant ABS enclosures
  • Flexible LPF settings
  • Max. 130dB SPL

Product Specifications

  • Speaker type:  8” 2-way, Bi-amp powered speaker, Bass-reflex type
  • Frequency range (-10dB):  57Hz – 20kHz

Nominal coverage:

  • H:  90°
  • V: 60°

Components:

  • LF:  Diameter:8" cone, Voice Coil:2", Magnet:Ferrite
  • HF:  Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
  • Crossover:  FIR-X tuning™ (linear phase FIR filter)
  • Output power:  Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
  • Maximum output level (1m; on axis):  129dB SPL
  • I/O connectors:  INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1
  • Processors:  D-CONTOUR :FOH / MAIN, MONITOR, OFF
  • Power requirements:  100V - 240V, 50Hz/60Hz
  • Power consumption:  90W
  • Flying and mounting hardware:  Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
  • Pole socket:  35mm with 2-way features (0 or 7 degrees)

Dimensions

  • W:  280mm (11")
  • H:  458mm (18")
  • D:  280mm (11")
  • Net weight:  13.5kg (29.8lbs)
  • Accessories:  UB-DXR8 (U-bracket)
  • Others:  Material: ABS (Matte Finish, Black)
