DXS12MKII Compact 12" Powered Subwoofer Class D 1020W

« return to previous page

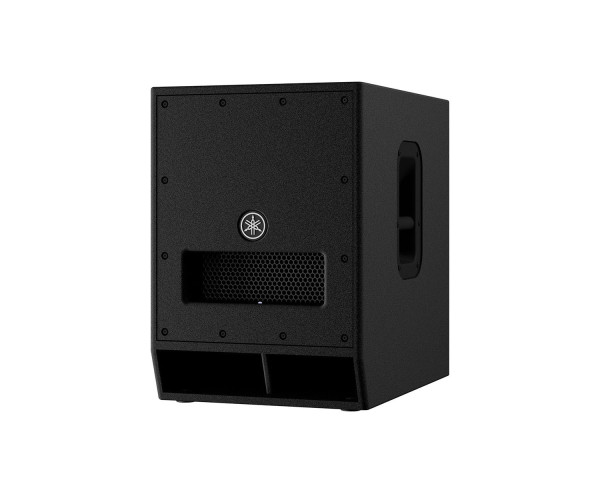

Yamaha DXS12MKII Compact 12 Powered Subwoofer Class D 1020W - Main Image

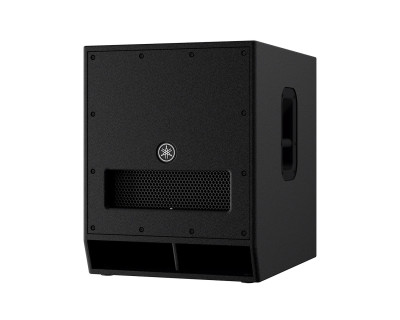

Yamaha DXS12MKII Compact 12 Powered Subwoofer Class D 1020W - Image 1
Yamaha DXS12MKII Compact 12 Powered Subwoofer Class D 1020W - Image 2
Yamaha DXS12MKII Compact 12 Powered Subwoofer Class D 1020W - Image 3
Yamaha DXS12MKII Compact 12 Powered Subwoofer Class D 1020W - Image 4
Yamaha DXS12MKII Compact 12 Powered Subwoofer Class D 1020W - Image 5
Yamaha DXS12MKII Compact 12 Powered Subwoofer Class D 1020W - Image 6
Price:
RRP: £1,118.40 inc VAT
Code:
YAMDXS12MKII
Manufacturer Code:
DXS 12 MKII
Brand:
Yamaha

Quantity required:

Main Features

  • 12" powered subwoofer with 1020W class-D power amplifier
  • High-output 12” woofer with a band-pass design cabinet for superb bass response with a maximum 134dB SPL
  • 42Hz-150Hz frequency range is ideal for small to medium-sized applications
  • Built-in D-XSUB processing allows you to extend the frequency response even lower
  • Plywood cabinet is durable and acoustically optimized for minimal distortion
  • Cardioid mode for bass management onstage
Share:

DXS12MKII Compact 12" Powered Subwoofer Class D 1020W

For smaller venues or temporary sound reinforcement setups that require serious power with a professional edge, look no further than this compact powerhouse. The new DXS12mkII is equipped with an upgraded 1020W power amplifier producing an impressive 134dB and reaching as low as 42Hz producing clean, clear, heart-stopping bass that defies its lightweight construction. Try selecting our D-XSUB “BOOST” or “XTENDED LF” low frequency processing settings, turn up the volume, and watch the eyes widen and jaws drop. All this in a small, easy to install enclosure. Listeners will need to search for the source of this much low frequency performance.

Product Features

  • 12" powered subwoofer with 1020W class-D power amplifier
  • High-output 12” woofer with a band-pass design cabinet for superb bass response with a maximum 134dB SPL
  • 42Hz-150Hz frequency range is ideal for small to medium-sized applications
  • Built-in D-XSUB processing allows you to extend the frequency response even lower
  • Plywood cabinet is durable and acoustically optimized for minimal distortion
  • Cardioid mode for bass management onstage
  • Selectable X-OVER (80/100/120 Hz)

Product Specifications

General

  • Speaker type: 12" powered subwoofer, Band-pass type
  • Frequency range (-10dB): 42 Hz - 150 Hz
  • Components LF: 12" cone, 2.5" voice coil
  • Output power: Dynamic:1020W / Continuous: 800W
  • Maximum output level (1m; on axis): 134dB SPL
  • I/O connectors: INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT)
  • Processors: D-XSUB: BOOST, XTD LF, NORMAL
  • Cooling: Natural convection
  • Power requirements: 100V – 240V, 50Hz/60Hz
  • Power consumption: 100W
  • Pole socket: 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)

Physical & Dimensions

  • Height: 567mm
  • Width: 400mm
  • Depth: 570mm
  • Weight: 30.0kg

What's in the Box?

  • AC power cord
  • Owner’s manual
  • Technical Specifications

Optional accessories

  • Speaker cover: SPCVR-DXS122
  • Wheels: SPW-1; 4 pieces
